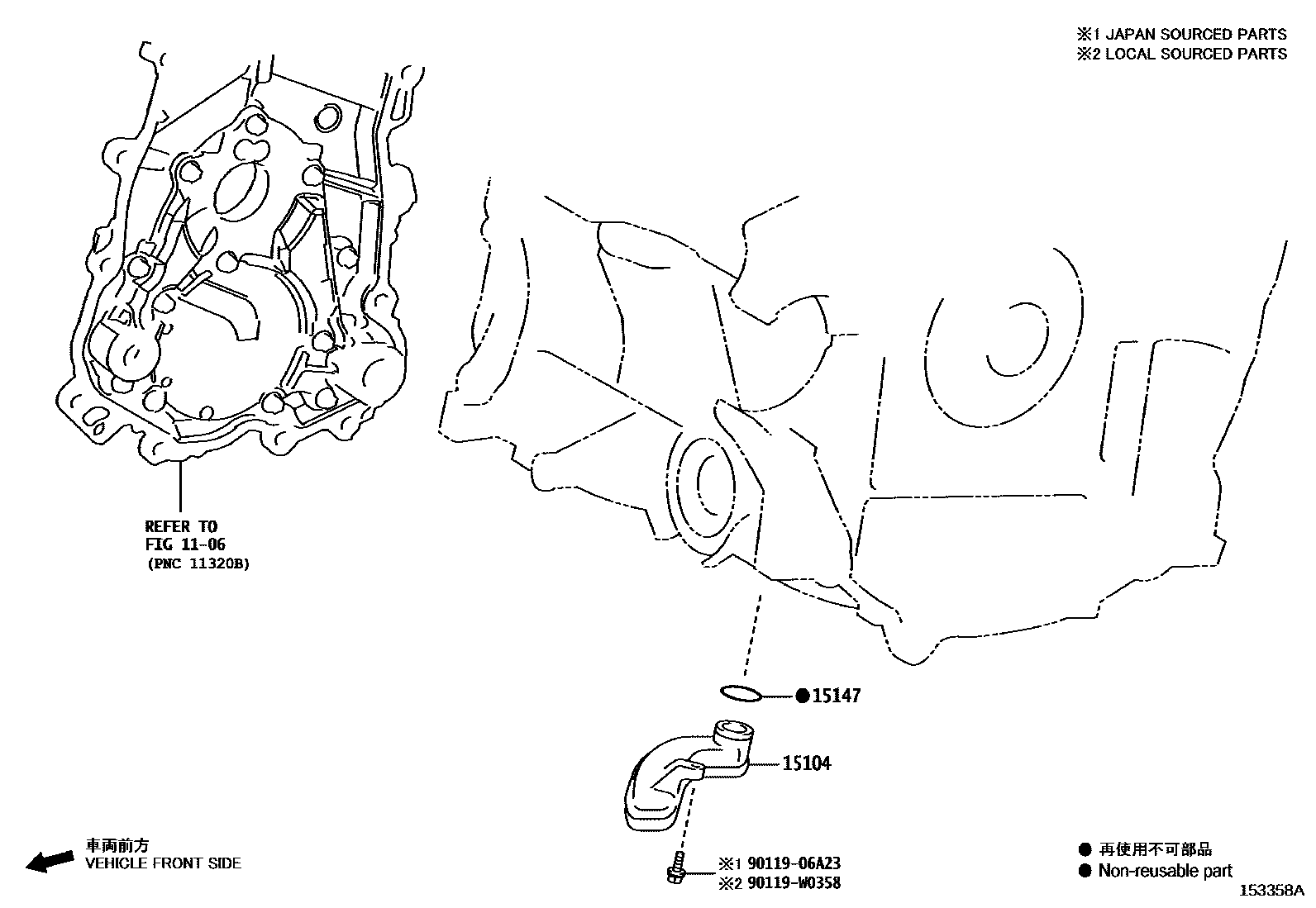

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-15110iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

15147GASKET, OIL STRAINER

main15147-25010iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

9011906A23

main90119-06A23

90119W0358

main90119-W0358

5 parts on this diagram · 3 diagrams in section
