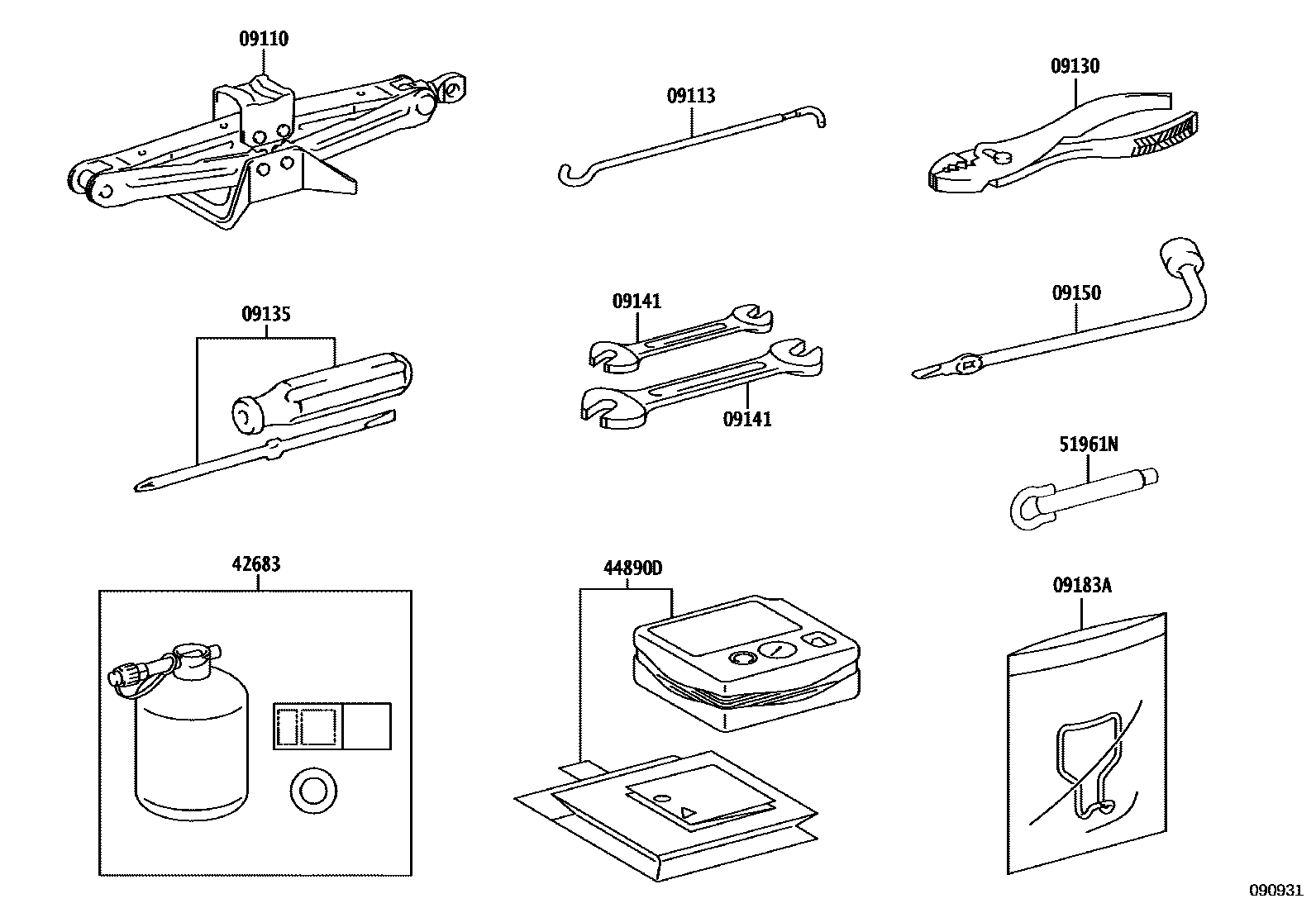

STANDARD TOOL
09110JACK ASSY
main09111-F4010iZRE210..LHD..CVT..D;ZRE210..RHD..CVT..D..GEN;ZRE210..6F..(GCC,GEN,RUS);ZRE21#,ZWE211..CVT..(G,N)..(GCC,GEN,RUS); ZRE210..N..EUR;MZEA11,ZWE21#..EUR;ZRE210..LHD..6F..D..EUR201901-202207
TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-GROUND TIRE; TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-TEMPORARY(T125/70D17); TOOL(PLANT INSTALL)-HUB NUT WRENCH & JACK HANDLE&SPARE TIRE-GROUND TIRE; TOOL(PLANT INSTALL)-HUB NUT WRENCH & JACK HANDLE&SPARE TIRE-TEMPORARY(T125/70D17)
main09111-F4011iZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN); ZRE210..N..EUR;MZEA11..LHD..(D,N)202208-202301
TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-GROUND TIRE; TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-TEMPORARY(T125/70D17); TOOL(PLANT INSTALL)-HUB NUT WRENCH & JACK HANDLE&SPARE TIRE-GROUND TIRE; TOOL(PLANT INSTALL)-HUB NUT WRENCH & JACK HANDLE&SPARE TIRE-TEMPORARY(T125/70D17)
09113HANDLE, JACK
main09113-F4010iMZEA11,ZWE219..LHD..CVT..N..EUR; MZEA11,ZWE219..LHD..D; MZEA11..N..EUR;MZEA11..(G,N)..TUR;ZWE219..LHD..(G,N)..(EUR,TUR); ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN); ZWE219..EUR;MZEA11..LHD..(D,N)..EUR202301
SPARE TIRE-GROUND TIRE(ALUMINUM); SPARE TIRE-GROUND TIRE(STEEL); SPARE TIRE-TEMPORARY(T125/70D17); WHEEL CAP-FULL CAP(FOR 16 INCH)&SPARE TIRE-GROUND TIRE(STEEL)
09130PLIERS
main90080-99009iZRE210..CVT..D..GCC; ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS); ZRE210..N..EUR;MZEA11..LHD..(D,N)201901-202301
TOOL(PLANT INSTALL)-*HJDSP; TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-GROUND TIRE; TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-TEMPORARY(T125/70D17)
09135DRIVER, SCREW
main90080-99008iZRE210..CVT..D..GCC; ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS); ZRE210..N..EUR;MZEA11..LHD..(D,N)201901-202301
TOOL(PLANT INSTALL)-*HJDSP; TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-GROUND TIRE; TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-TEMPORARY(T125/70D17)
09141SPANNER
main90080-99010iZRE210..CVT..D..GCC; ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS); ZRE210..N..EUR;MZEA11..LHD..(D,N)201901-202301
8 X 10; 8 X 10,TOOL(PLANT INSTALL)-*HJDSP; 8 X 10,TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-GROUND TIRE; 8 X 10,TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-TEMPORARY(T125/70D17)
main90080-99011iZRE210..CVT..D..GCC; ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS); ZRE210..N..EUR;MZEA11..LHD..(D,N)201901-202301
12 X 14; 12 X 14,TOOL(PLANT INSTALL)-*HJDSP; 12 X 14,TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-GROUND TIRE; 12 X 14,TOOL(PLANT INSTALL)-*HJDSP&SPARE TIRE-TEMPORARY(T125/70D17)
09150WRENCH, HUB NUT BOX
main09150-F4010iMZEA11,ZWE219..CVT..N..EUR; MZEA11,ZWE219..LHD..CVT..N..EUR; MZEA11,ZWE219..LHD..D; MZEA11..N..EUR;ZWE219..G..TUR;MZEA11..(G,N)..TUR;ZWE219..LHD..N..(EUR,TUR); ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN); ZWE219..(D,N)..EUR;MZEA11..LHD..(D,N)..EUR202301
SPARE TIRE-GROUND TIRE(ALUMINUM); SPARE TIRE-GROUND TIRE(STEEL); SPARE TIRE-TEMPORARY(T125/70D17); TIRE & DISC WHEEL-205/55R16,STEEL&WHEEL CAP-FULL CAP(FOR 16 INCH)&SPARE TIRE-GROUND TIRE(STEEL); TIRE & DISC WHEEL-205/55R16,STEEL&WHEEL CAP-FULL CAP(FOR 16 INCH)&SPARE TIRE-TEMPORARY(T125/70D17)
09183AREPLACER, WHEEL CAP
TIRE & DISC WHEEL-205/55R16,STEEL&WHEEL CAP-FULL CAP(FOR 16 INCH)
42683SEAL, TIRE REPAIR
main42606-F4040supersedes 42606-F4041iZRE210..N..EUR;MZEA11,ZWE21#..EUR;ZRE210..LHD..6F..D..EUR; ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;MZEA11,ZWE21#..EUR;ZRE210..LHD..6F..D..EUR201901-202012
SPARE TIRE-GROUND TIRE; SPARE TIRE-TEMPORARY(T125/70D17)
main42606-F4041iMZEA11..LHD..D;ZWE219..D..TUR;MZEA11,ZWE219..LHD..CVT..(D,N)..EUR; MZEA11..N..EUR;MZEA11..(G,N)..TUR;ZWE219..LHD..(G,N)..(EUR,TUR); MZEA11..TUR;ZWE219..EUR,TUR;MZEA11..LHD..(D,N)..EUR; ZWE219..EUR;MZEA11..LHD..(D,N)..EUR202301
SPARE TIRE-GROUND TIRE(ALUMINUM); SPARE TIRE-GROUND TIRE(STEEL); SPARE TIRE-TEMPORARY(T125/70D17)
44890DCOMPRESSOR ASSY, AIR
main42680-F4011supersedes 42680-F4013iZRE210..N..EUR;MZEA11,ZWE21#..EUR;ZRE210..LHD..6F..D..EUR; ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;MZEA11,ZWE21#..EUR;ZRE210..LHD..6F..D..EUR201901-202101
SPARE TIRE-GROUND TIRE
main42680-F4013iMZEA11..LHD..D;ZWE219..D..TUR;MZEA11,ZWE219..LHD..CVT..(D,N)..EUR; MZEA11..N..EUR;MZEA11..(G,N)..TUR;ZWE219..LHD..(G,N)..(EUR,TUR); MZEA11..TUR;ZWE219..EUR,TUR;MZEA11..LHD..(D,N)..EUR202301
SPARE TIRE-GROUND TIRE(ALUMINUM); SPARE TIRE-GROUND TIRE(STEEL)
main42680-F4012supersedes 42680-F4013iZRE210..N..EUR;MZEA11,ZWE21#..EUR;ZRE210..6F..D..EUR202101-202110
SPARE TIRE-GROUND TIRE
51961NHOOK, TRANSPORT
10 parts on this diagram · 1 diagram in section
