HORN

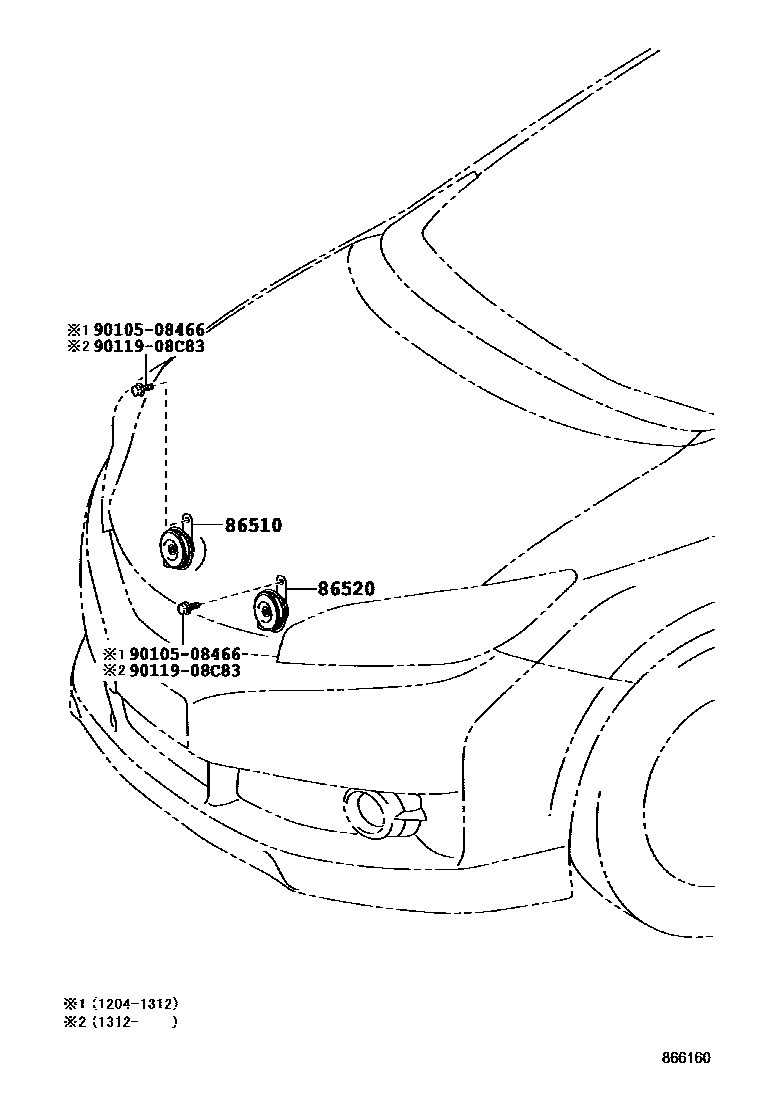

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-20280i200909-201005

86520HORN ASSY, LOW PITCHED

main86520-20300i200909-201005

9010508466

main90105-08466

9011908C83

main90119-08C83

4 parts on this diagram · 1 diagram in section
