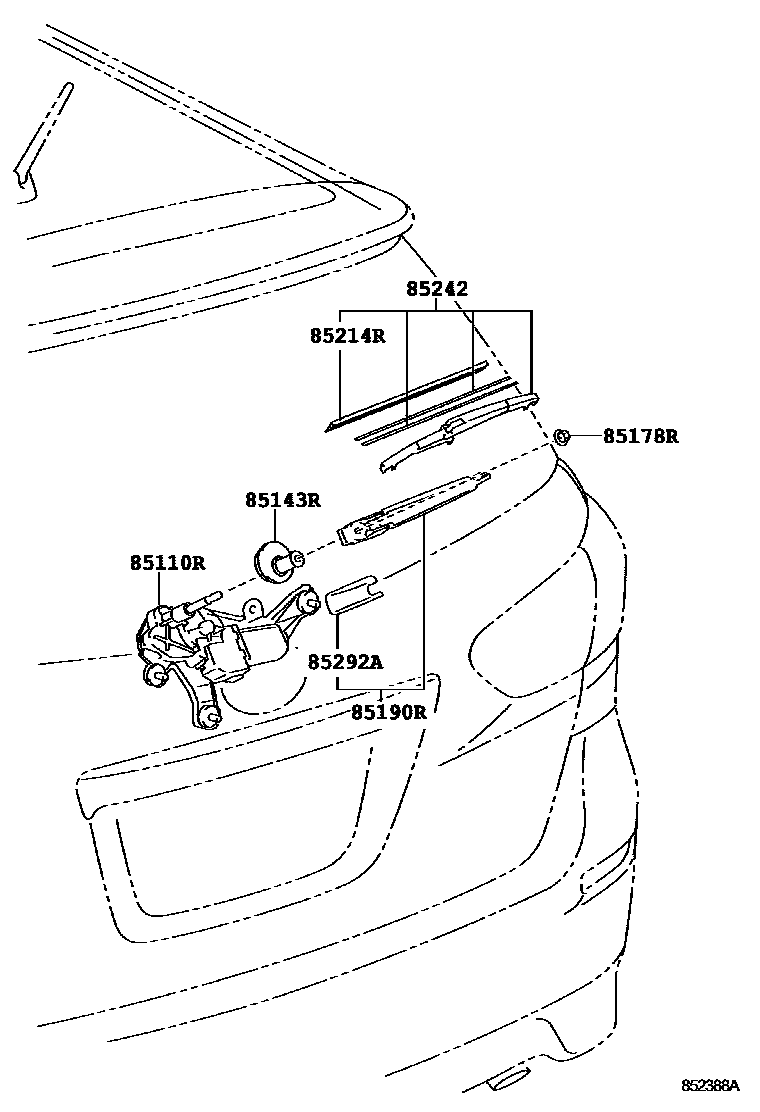

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-68020iZGE21200909-201005

85143RGROMMET, REAR WIPER MOTOR

main85143-42040iZGE21200909-201005

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZGE21200909-201005

85190RARM ASSY, REAR WIPER

main85241-42060iZGE21200909-201005

85214RRUBBER, REAR WIPER

main85214-42040iZGE21200909-201005

85242BLADE, RR WIPER

main85242-42030iZGE21200909-201005

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iZGE21200909-201005

7 parts on this diagram · 1 diagram in section
