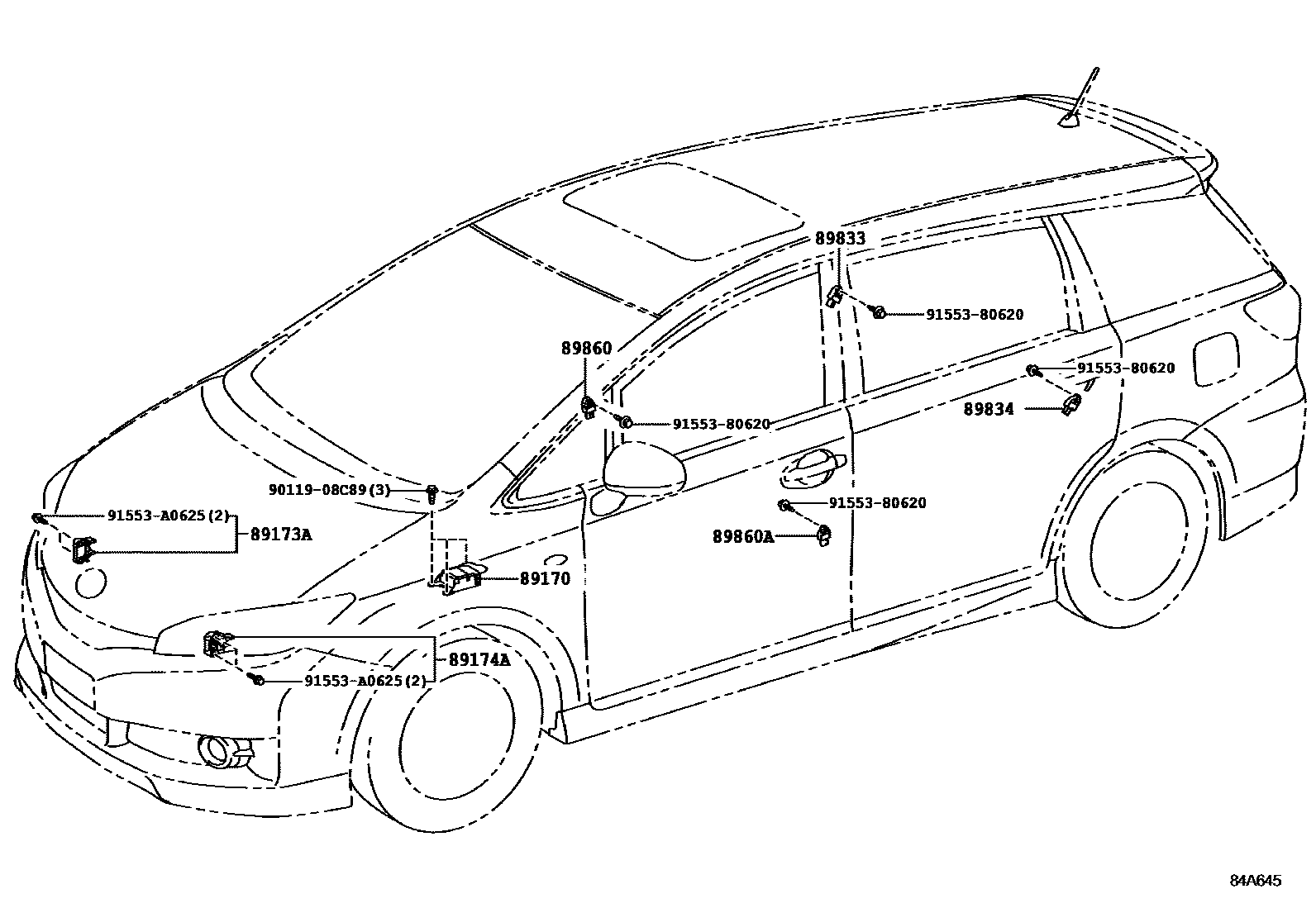

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-68030iZGE21200909-201005

main89170-68060iZGE2#201204

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375iZGE21200909-201005

main89173-59275iZGE2#201204

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375iZGE21200909-201005

main89173-59275iZGE2#201204

89833SENSOR, AIRBAG, REAR RH

main89831-33030iZGE21200909-201005

main89831-68020iZGE2#201204-201308

main89831-68040iZGE2#201309

89834SENSOR, AIRBAG, REAR LH

main89831-33030iZGE21200909-201005

main89831-68020iZGE2#201204-201308

main89831-68040iZGE2#201309

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iZGE21200909-201005

main89831-68010iZGE2#201204-201308

main89831-68030iZGE2#201309

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iZGE21200909-201005

main89831-68010iZGE2#201204-201308

main89831-68030iZGE2#201309

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0625

main91553-A0625

10 parts on this diagram · 1 diagram in section
