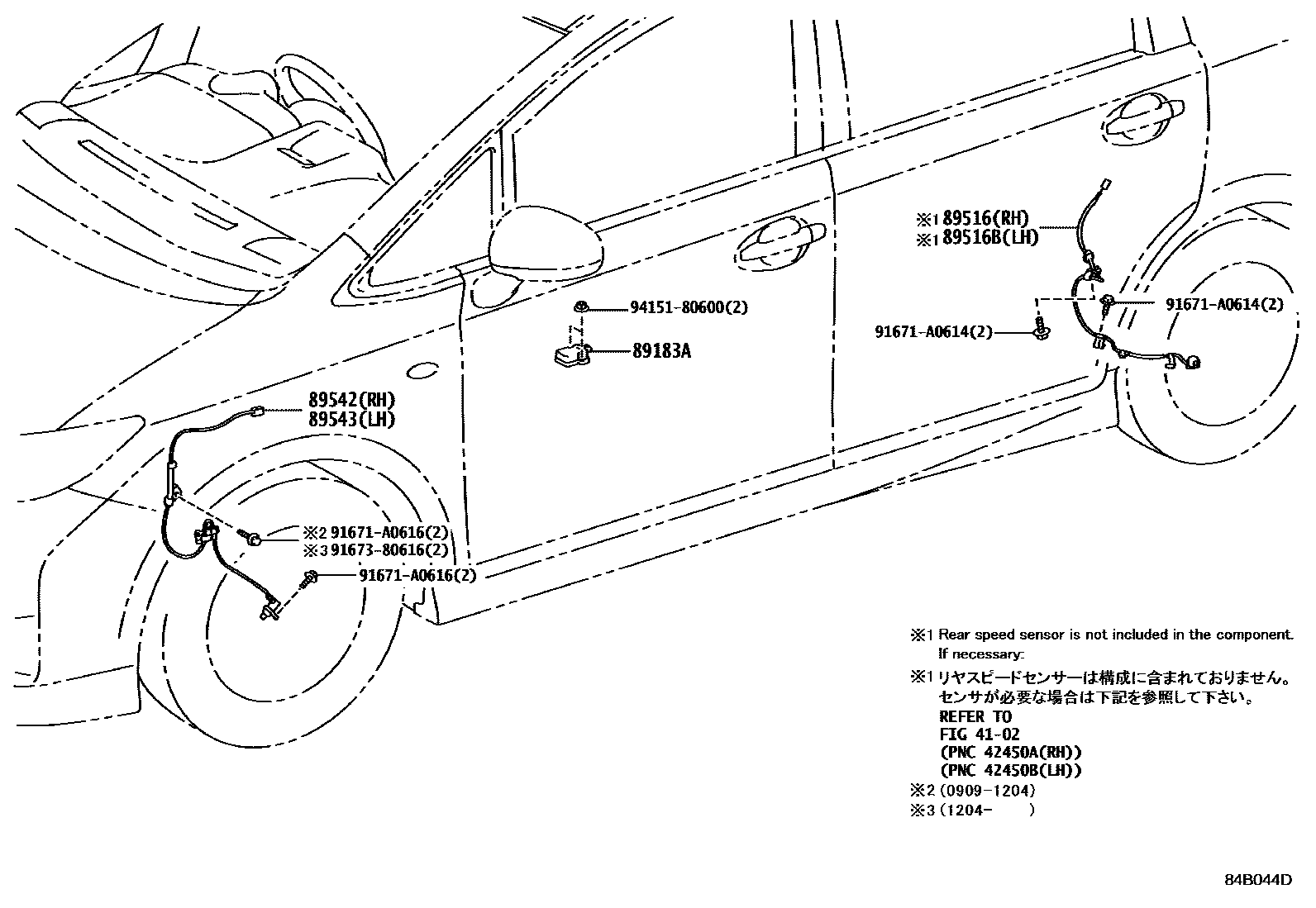

ABS & VSC

0001 1ZGE20,21 0002 1ZGE22

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

89183ASENSOR, YAWRATE

main89183-48030iZGE2#..CVFC200909-201204

89516WIRE, SKID CONTROL SENSOR

main89516-68050iZGE21200909-201711

main89516-68070iZGE22201006-201505

89516BWIRE, SKID CONTROL SENSOR

main89516-68060iZGE20,21..CVFC200909-201204

main89516-68080iZGE22201006-201505

89542SENSOR, SPEED, FRONT RH

main89542-68020iZGE2#200909-201505

main89542-68040iZGE20201505

89543SENSOR, SPEED, FRONT LH

main89543-68020iZGE21200909-201505

main89543-68040iZGE20201505

91671A0614

main91671-A0614

91671A0616

main91671-A0616

9167380616

main91673-80616

9415180600

main94151-80600

10 parts on this diagram · 2 diagrams in section
