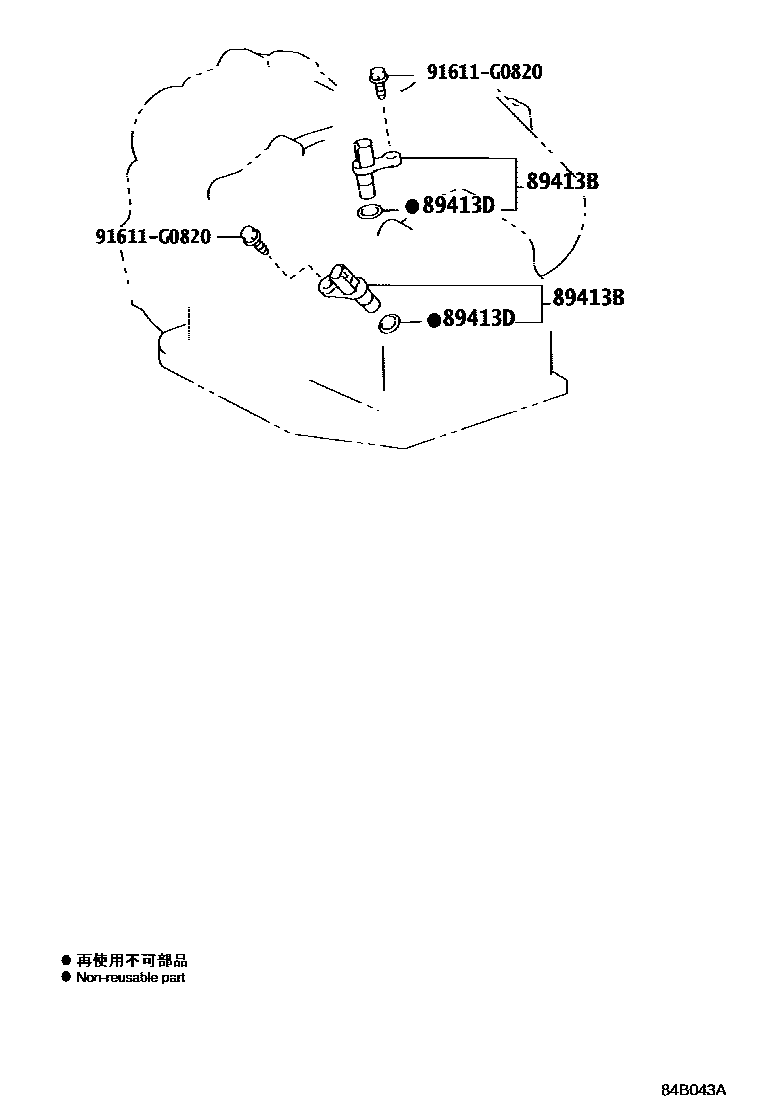

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-12020×2iZGE20201204-201711

NO.1

main89413-24010×2iZGE21200909-201005

main89413-28010×2iZGE21,22201006-201204

NO.1

main89413-60020iZGE2#201204-201711

NO.2

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iZGE21200909-201005

91611G0820

main91611-G0820

3 parts on this diagram · 3 diagrams in section
