WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1CLAMP & BRACKET 0009 1CONNECTOR(1/2) 0010 1CONNECTOR(2/2)

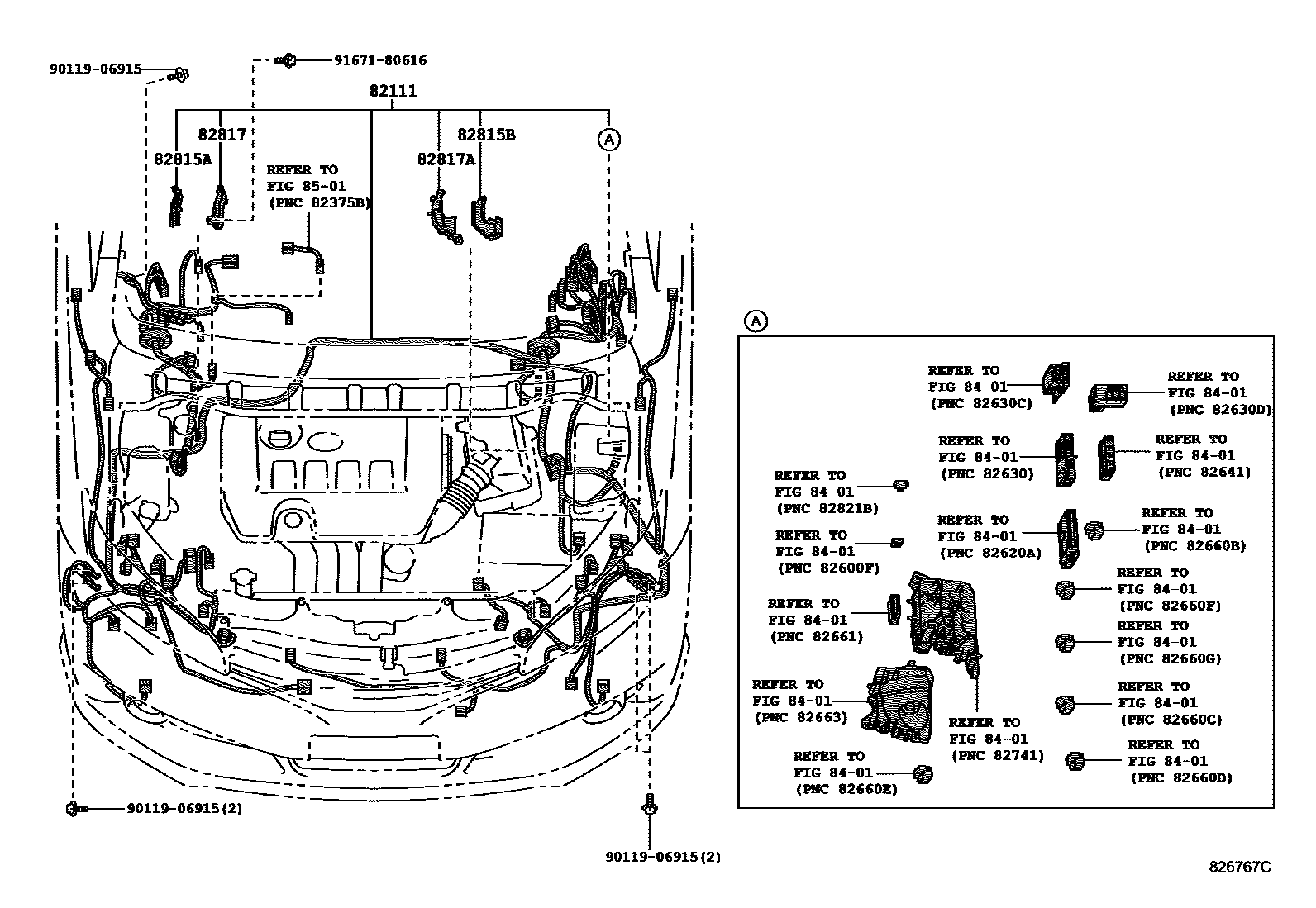

82111WIRE, ENGINE ROOM MAIN

main82111-68151supersedes 82111-68141iZGE22201006-201204

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main82111-68180iZGE21200909-201005

main82111-68211iZGE20..18X201006-201204

main82111-68220iZGE21201006-201204

main82111-68230supersedes 82111-68142iZGE22201204-201505

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main82111-68201supersedes 82111-68122iZGE20..18X201204-201505

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main82111-68222supersedes 82111-68122iZGE20..18X201204-201505

SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main82111-68330supersedes 82111-68290iZGE20..18S201505

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main82111-68370supersedes 82111-68380iZGE20..18X201505

SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main82111-68400supersedes 82111-68380iZGE20..18X201505

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12330iZGE21200909-201005

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12250iZGE21200909-201005

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12E91iZGE21200909-201005

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12D50iZGE21200909-201005

8401

8501

9011906915

main90119-06915

9167180616

main91671-80616

9 parts on this diagram · 10 diagrams in section
