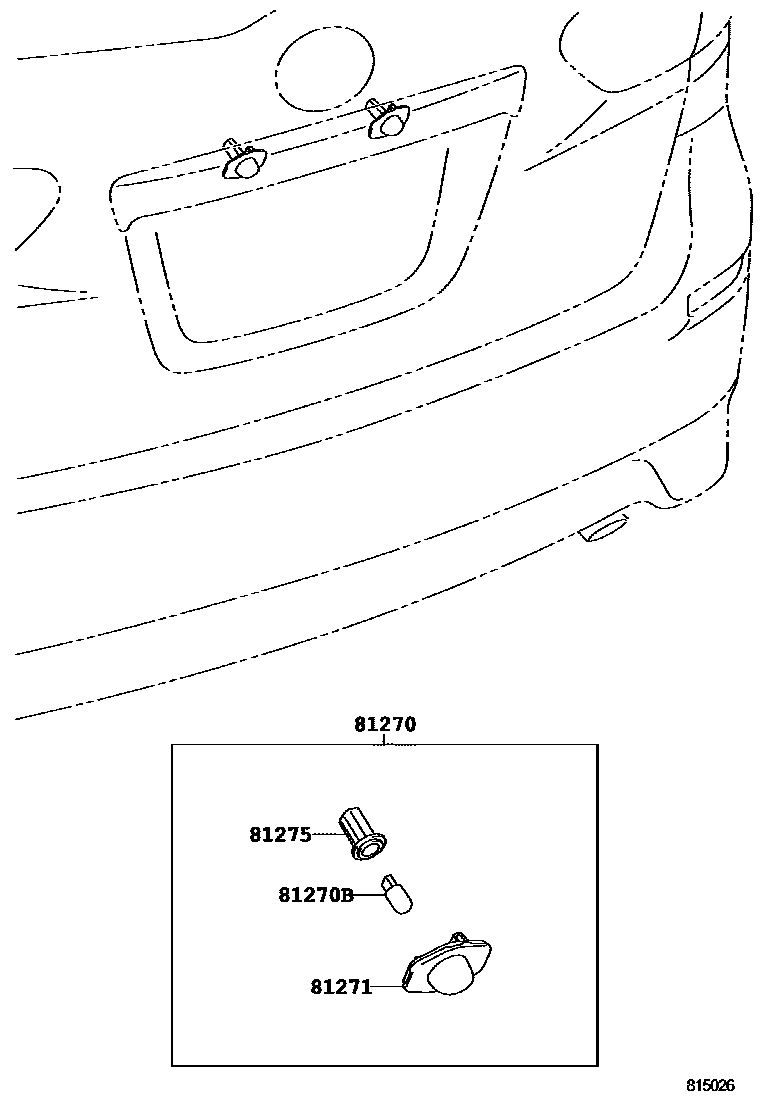

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-72010×2iZGE21200909-200911

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iZGE21200909-201005

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-72010×2iZGE21200909-200912

main81271-72011×2iZGE21200912-201005

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12520×2iZGE21200909-201005

4 parts on this diagram · 1 diagram in section
