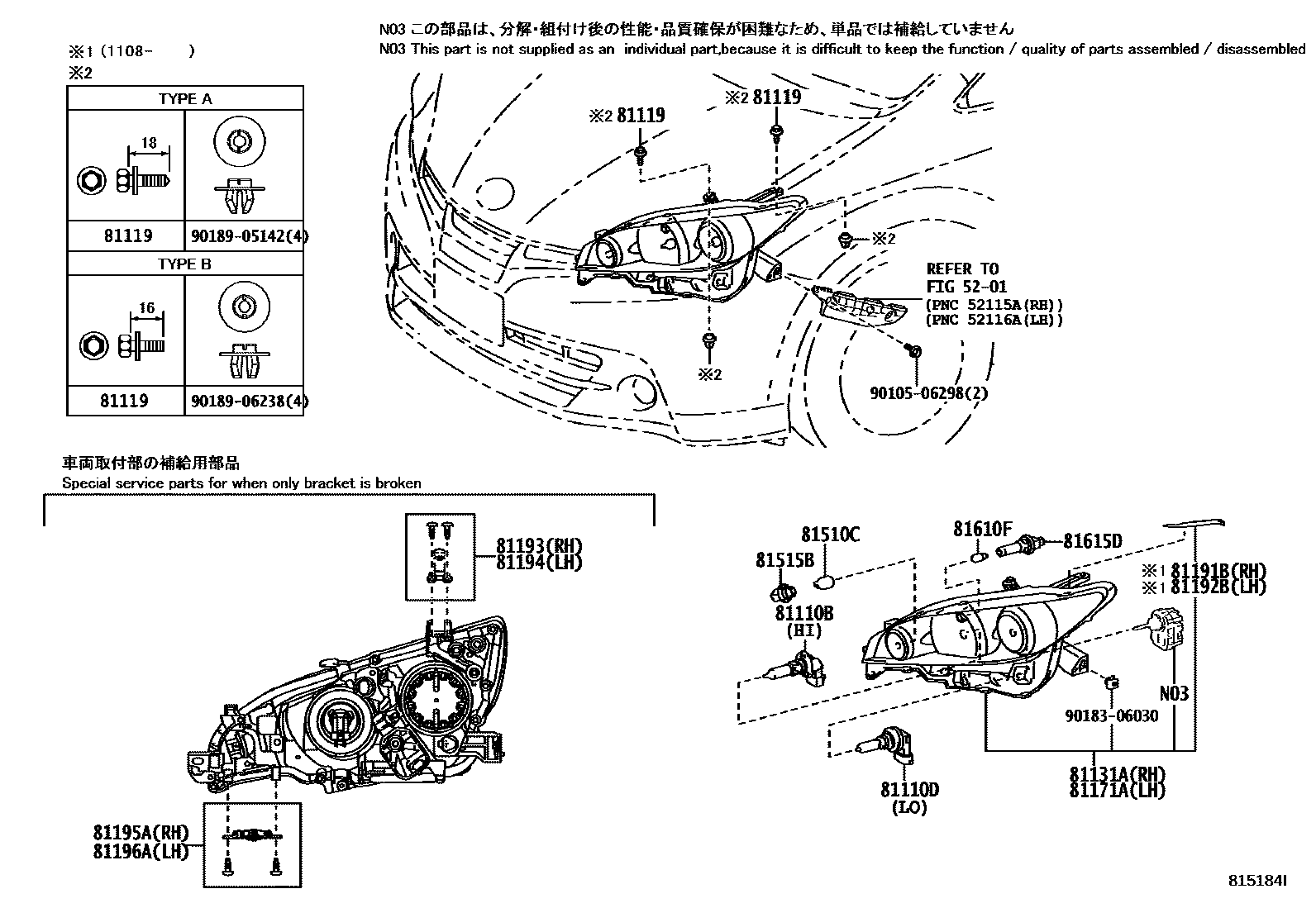

HEADLAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iZGE21200909-201005

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13082×2iZGE21200909-201005

12V 55W,HALOGEN

81119SCREW, HEADLAMP

main90159-50311×4supersedes 90159-50388iZGE2#200909-201204

TYPE A:REFER ILLUST.

main90159-50388×4iZGE2#..18S,20Z201206-201303

TYPE A:REFER ILLUST.

main90159-60621×4iZGE20201511-201711

TYPE B:REFER ILLUST.

81131AUNIT, HEADLAMP, RH

main81130-68070iZGE21200909-201005

main81145-68080iZGE2#..18S,20G,20Z201006-201204

main81145-68100supersedes 81130-68070iZGE2#..18S,20Z; ZGE20..18X201204

SINGAPORE SPEC&HEADLAMP-DISCHARGE

81171AUNIT, HEADLAMP, LH

main81170-68070iZGE21200909-201005

main81185-68080iZGE2#..18S,20G,20Z201006-201204

main81185-68100supersedes 81170-68070iZGE2#..18S,20Z; ZGE20..18X201204

SINGAPORE SPEC&HEADLAMP-DISCHARGE

81191BTAPE, HEADLAMP, RH

main81191-68010iZGE2#201006-201204

81192BTAPE, HEADLAMP, LH

main81192-68010iZGE2#201006-201204

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-68050iZGE21200909-201005

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81193-68050iZGE21200909-201005

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-68050iZGE21200909-201005

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81195-68050iZGE21200909-201005

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iZGE21200909-201005

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2iZGE21200909-201005

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iZGE21200909-201005

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60046×2iZGE21200909-200912

main90075-60077×2iZGE21200912-201005

9010506298

main90105-06298

9018306030

main90183-06030

9018905142

main90189-05142

9018906238

main90189-06238
