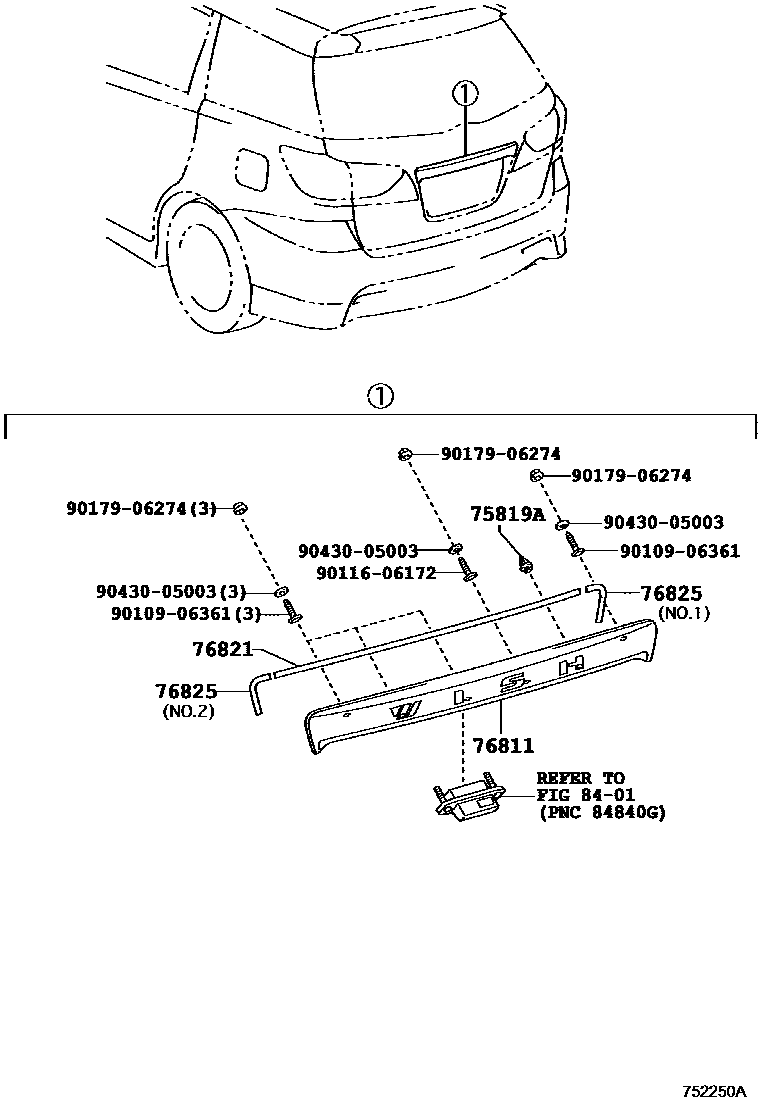

REAR MOULDING

0001 1 0002 1

75819ACLIP, BACK DOOR MOULDING

main75819-33010iZGE21200909-201005

76811GARNISH, BACK DOOR, OUTSIDE

main76811-68120iZGE21200909-201005

main76811-68130iZGE2#201204

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-68070iZGE2#201204

main76821-68080iZGE2#..CVFC200909-201204

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-68030iZGE21200909-201005

NO.1

main76835-68030iZGE2#..CVFC200909-201204

NO.2

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010906361

main90109-06361

9011606172

main90116-06172

9017906274

main90179-06274

9043005003

main90430-05003

9 parts on this diagram · 2 diagrams in section
