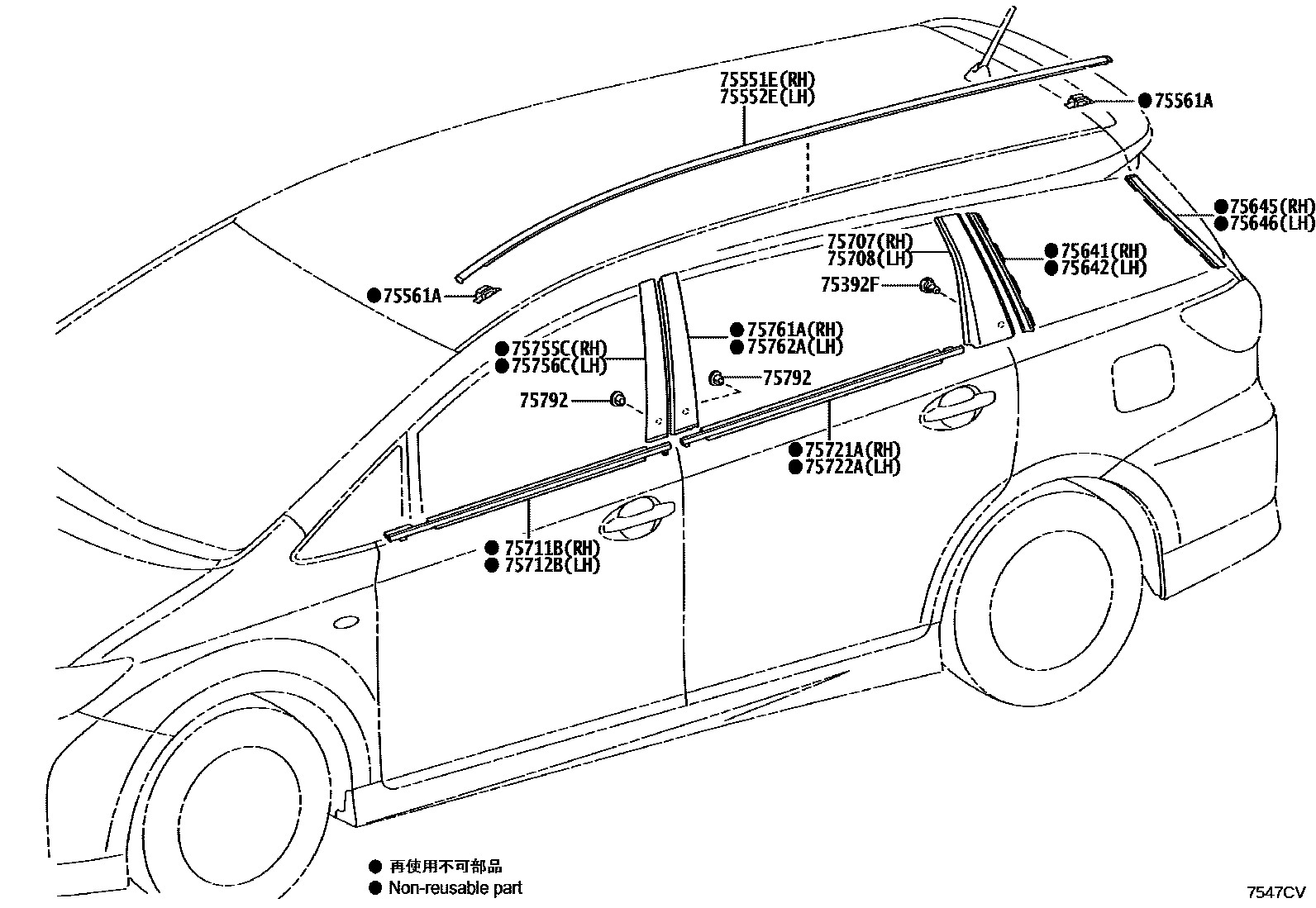

SIDE MOULDING

0001 1 0002 1

75392FRETAINER, OUTSIDE MOULDING

main75392-68030×2iZGE21200909-201005

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-68020iZGE21200909-201005

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-68020iZGE21200909-201005

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52040×4iZGE21200909-201005

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main75641-68020iZGE2#200909-201204

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main75642-68020iZGE2#200909-201204

75645MOULDING, QUARTER WINDOW, OUTSIDE REAR RH

main75645-68020iZGE2#200909-201204

75646MOULDING, QUARTER WINDOW, OUTSIDE REAR LH

main75646-68020iZGE2#200909-201204

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-68020iZGE21200909-201005

main75707-68021iZGE2#201211

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-68020iZGE21200909-201005

main75708-68021iZGE2#201211

75711BMOULDING, FRONT DOOR BELT, RH

main75711-68020iZGE21200909-201005

main75711-68021iZGE2#201106-201204

75712BMOULDING, FRONT DOOR BELT, LH

main75712-68020iZGE21200909-201005

main75712-68021iZGE2#201204

75721AMOULDING, REAR DOOR BELT, RH

main75721-68020iZGE21200909-201005

main75721-68021iZGE2#201106-201204

75722AMOULDING, REAR DOOR BELT, LH

main75722-68020iZGE21200909-201005

main75722-68021iZGE2#201106-201204

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-68010iZGE21200909-201005

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-68010iZGE21200909-201005

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75075-68030iZGE21200909-201005

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75076-68030iZGE21200909-201005

NO PAINT REQ.

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×4iZGE2#200909-201204

19 parts on this diagram · 2 diagrams in section
