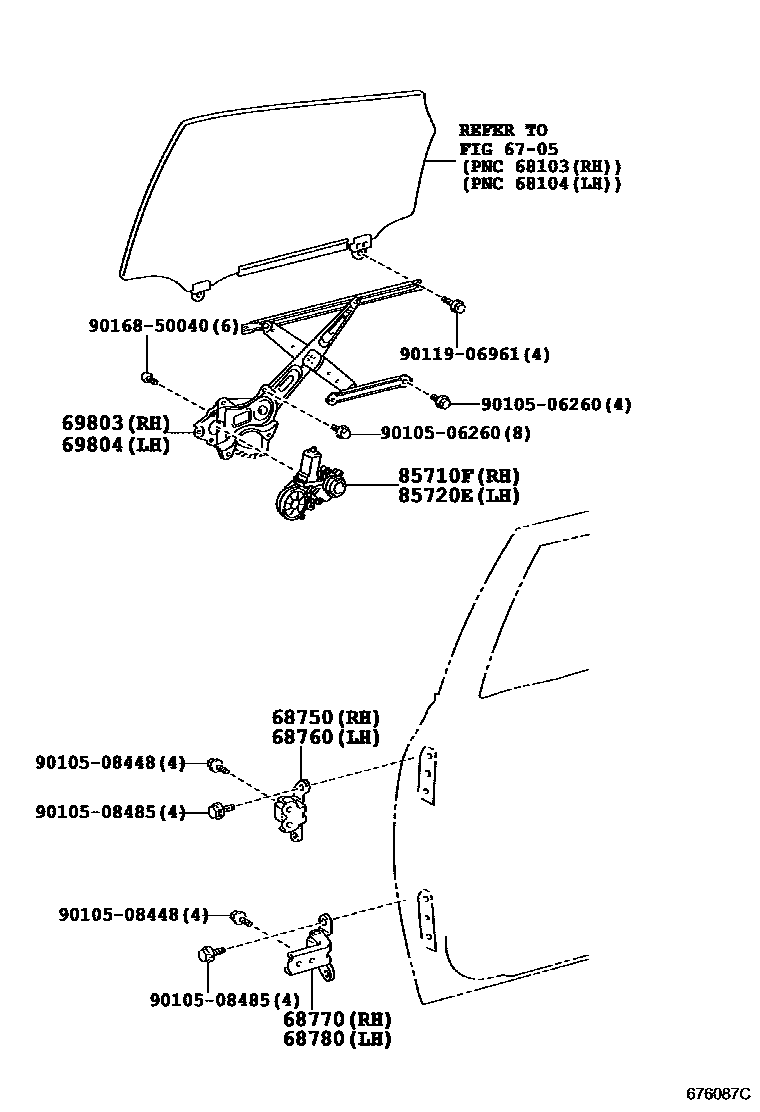

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-35041iZGE2#200909-201204

main68750-35042iZGE2#201206

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-35041iZGE2#200909-201204

main68760-35042iZGE2#201206

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZGE21200909-201005

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZGE21200909-201005

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-68020iZGE21200909-201005

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-68020iZGE21200909-201005

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-68020iZGE21200909-201005

main85710-68021iZGE2#201303

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-68020iZGE21200909-201005

main85720-68021iZGE2#201303

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
