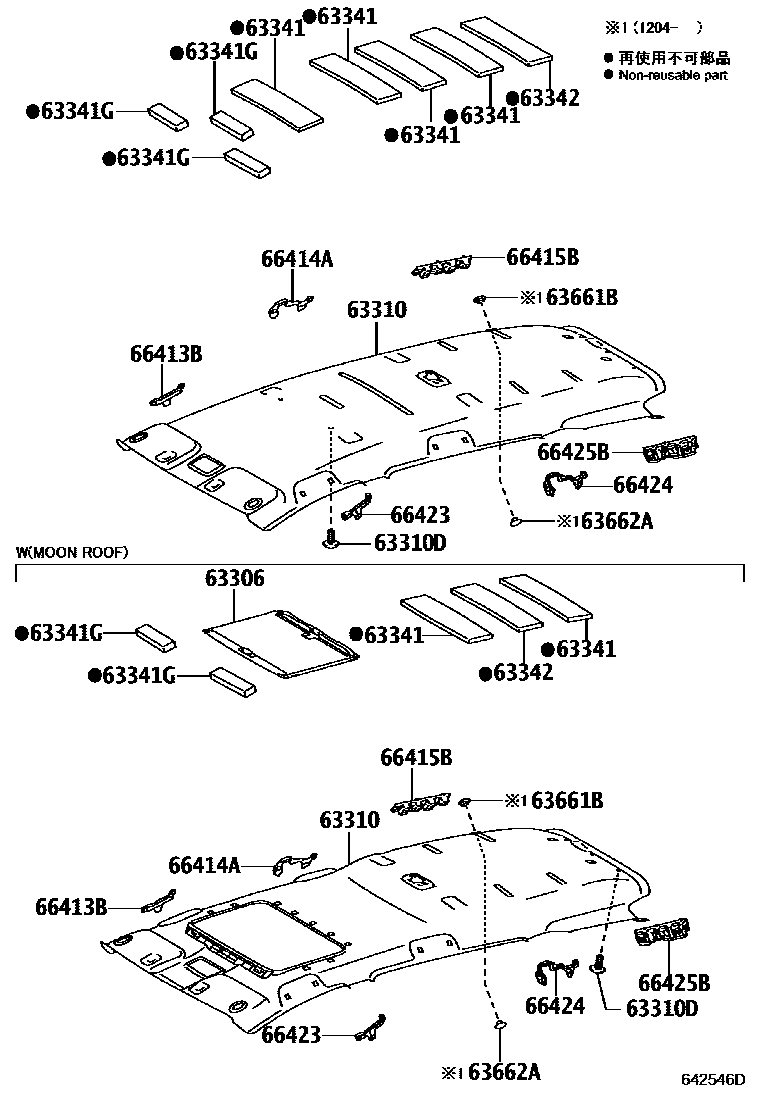

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-12100-B4iZGE20,22201006-201204

MOON ROOF-WITH,GRAY,TRIM1#

main63306-12100-E4iZGE20,21201006-201204

MOON ROOF-WITH,GREGE,TRIM4#

63310HEADLINING ASSY, ROOF

main63311-68010-B0iZGE2#..18S,18X,20X,20Z200909-201204

GRAY,TRIM1#

main63311-68010-E0iZGE20,21200909-201204

GREGE,TRIM4#

main63311-68020-B0iZGE20,22201006-201204

MOON ROOF-WITH,GRAY,TRIM1#

main63311-68020-E0iZGE21..20G200909-201005

W(MOON ROOF),GREGE,TRIM4#

main63311-68040-B0supersedes 63311-68030-B0iZGE2#201204-201711

MOON ROOF-WITH,GRAY,TRIM1#

main63311-68040-E0supersedes 63311-68030-E0iZGE20201204-201711

MOON ROOF-WITH,GREGE,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-05164-B6×5iZGE2#..18S,18X,20X,20Z200909-201204

GRAY,TRIM1#

main90467-05164-E4×5iZGE20,21200909-201204

SAND BEIGE,TRIM4#

main90467-05164-B0×3supersedes 90467-05164-B6iZGE2#201212-201711

LT.GRAY,TRIM1#; MOON ROOF-WITH,LT.GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-68030×4iZGE21; ZGE21..20G200909-201005

W(MOON ROOF)

63341GPAD, ROOF SILENCER

main63341-68040×3iZGE21; ZGE21..20G200909-201005

W(MOON ROOF)

63342PAD, ROOF SILENCER, NO.2

main63341-68030iZGE21200909-200911

main63341-68050iZGE21200911-201005

63661BCOVER, ROOF LINING TRIM, NO.1

main63661-68010iZGE22201204-201505

63662ACOVER, ROOF LINING TRIM, NO.2

main63662-68010iZGE22201204-201505

66413BSPACER, SIDE RAIL, FRONT RH

main66413-68030iZGE21200909-201005

66414ASPACER, SIDE RAIL, REAR RH

main66414-68020iZGE21200909-201005

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-68030iZGE21200909-201005

main66415-68031iZGE2#201204

66423SPACER, SIDE RAIL, FRONT LH

main66423-68030iZGE21200909-201005

66424SPACER, SIDE RAIL, REAR LH

main66424-68020iZGE21200909-201005

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-68030iZGE21200909-201005

14 parts on this diagram · 1 diagram in section
