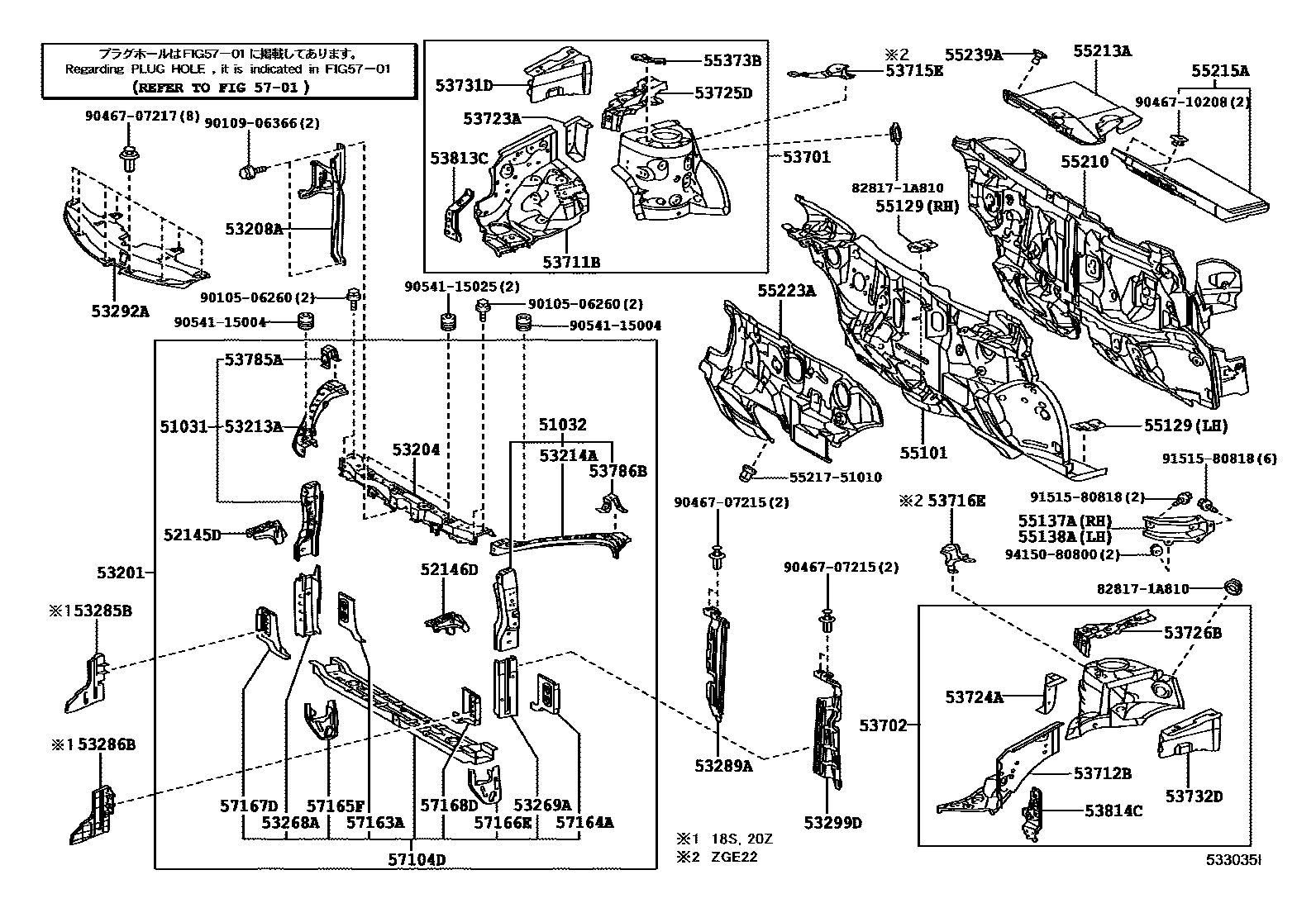

FRONT FENDER APRON & DASH PANEL

51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH

main51031-68021iZGE2#..CVFC200909-201204

51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH

main51032-68021iZGE21200909-201204

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-68020iZGE21200909-201204

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-68020iZGE21200909-201204

53201SUPPORT SUB-ASSY, RADIATOR

main53201-68021iZGE21200909-201204

53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER

main53209-20390iZGE21200909-201204

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-68020iZGE21200909-201204

53213ASUPPORT, RADIATOR, UPPER RH

main53213-68020iZGE21200909-201204

53214ASUPPORT, RADIATOR, UPPER LH

main53214-68020iZGE21200909-201204

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-20110iZGE21200909-201204

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-63010iZGE21200909-201204

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-68030iZGE20,22..18S,20Z201006-201204

main53285-68050iZGE2#..18S,20Z201204

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53285-68030iZGE20,22..18S,20Z201006-201204

main53285-68050iZGE2#..18S,20Z201204

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-68020iZGE21200909-201204

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-68020iZGE21200909-201204

53299DSEAL, RADIATOR SIDE DEFLECTOR, LH

main53299-68010iZGE21200909-201204

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-68020iZGE2#200909-201711

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-68020iZGE2#200909-201711

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12912iZGE21200909-201204

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12230iZGE21200909-201204

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-68010iZGE22201006-201505

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-68010iZGE22201006-201505

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-12080iZGE21200909-201204

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-12070iZGE21200909-201204

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-68010iZGE21200909-201204

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-68010iZGE21200909-201204

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12160iZGE2#..CVFC200909-201204

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12140iZGE2#200909-201204

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-68010iZGE21200909-201204

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-68010iZGE21200909-201204

53813CEXTENSION, FRONT FENDER, RH

main53813-68020iZGE21200909-201204

53814CEXTENSION, FRONT FENDER, LH

main53814-20070iZGE21200909-201204

55101PANEL SUB-ASSY, DASH

main55101-68040iZGE2#200909-201207

sub55101-68041

main55101-68041iZGE2#201208-201711

55129COVER, DASH PANEL HOLE

main55129-47010iZGE2#..CVFC200909-201204

RH

main55139-47010iZGE2#..CVFC200909-201204

LH

55137ABRACE, DASH TO FRAME, RH

main55137-12060iZGE2#..CVFC200909-201204

55138ABRACE, DASH TO FRAME, LH

main55138-12030iZGE21200909-201204

55210INSULATOR ASSY, DASH PANEL

main55210-68020iZGE21200909-201204

55213APAD, DASH PANEL SILENCER

main55213-68020iZGE2#200909-201408

main55213-68021iZGE2#201408

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-68030iZGE21200909-201204

55223AINSULATOR, DASH PANEL, OUTER

main55223-20160iZGE21200909-201204

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020iZGE21200909-201204

55373BBRACKET, OIL RESERVOIR TANK

main55373-68010iZGE21200909-201204

5701

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-68020iZGE21200909-201001

sub57104-68021

main57104-68021iZGE21201002-201204

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-32050iZGE21200909-201204

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-32050iZGE21200909-201204

57165FREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH

main57165-68010iZGE21200909-201204

57166EREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH

main57166-68010iZGE21200909-201204

57167DREINFORCEMENT, FRONT CROSSMEMBER SIDE, RH

main57167-32080iZGE21200909-201204

57168DREINFORCEMENT, FRONT CROSSMEMBER SIDE, LH

main57168-32080iZGE21200909-201204

5521751010STRIP, DASH PANEL SILENCER FINISH

main55217-51010

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9010506260

main90105-06260

9010906366

main90109-06366

9046707215

main90467-07215

9046707217

main90467-07217

9046710208

main90467-10208

9054115004

main90541-15004

9054115025

main90541-15025

9151580818

main91515-80818

9415080800

main94150-80800

61 parts on this diagram · 1 diagram in section
