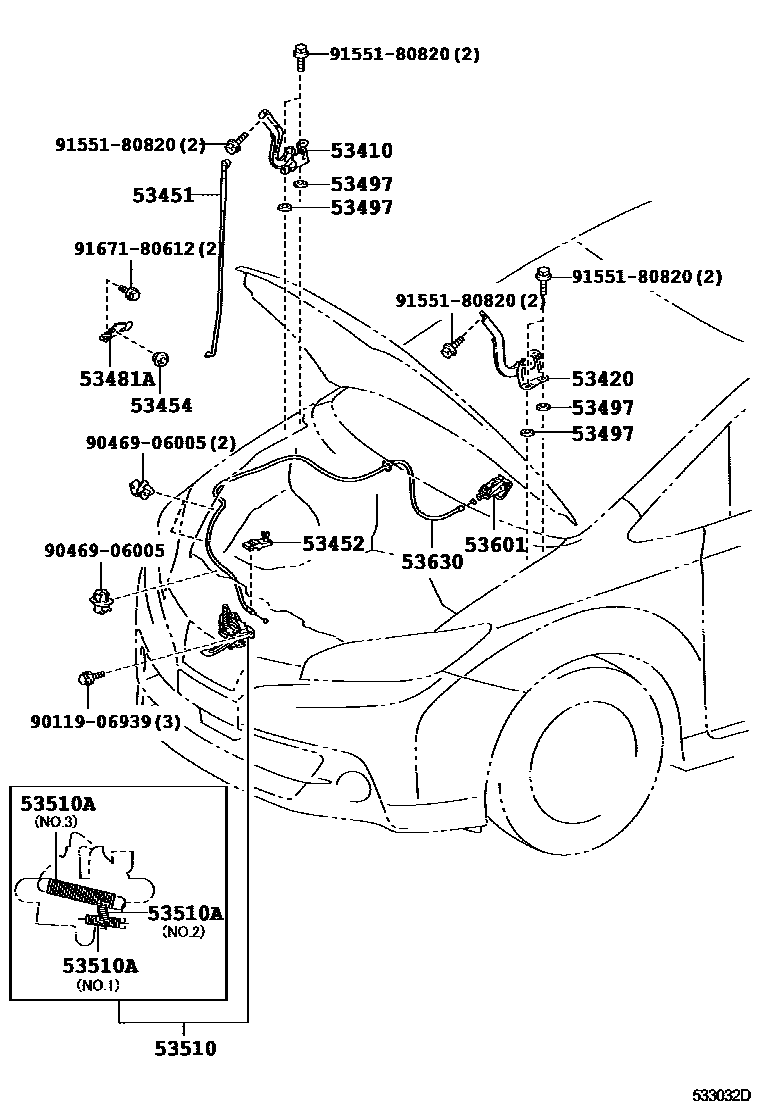

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-68030iZGE21200909-201005

53420HINGE ASSY, HOOD, LH

main53420-68030iZGE21200909-201005

53451ROD, HOOD SUPPORT

main53440-68020iZGE21200909-201005

53452HOLDER, HOOD STAY

main53452-68010iZGE21200909-201005

53454CLIP, HOOD SUPPORT ROD

main53454-52040iZGE2#..CVFC200909-201204

53481ABRACKET, HOOD SUPPORT, RH

main53481-68010iZGE21200909-201005

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iZGE2#201204

T=2.0

main53497-42010×4iZGE2#..CVFC200909-201204

T=0.5

53510LOCK ASSY, HOOD

main53510-68050iZGE21200909-201005

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iZGE2#201204

WD=0.9,CW=21,NO.1

main90506-12063iZGE21200909-201005

WD=1.2,CW=8.5,NO.2

main90506-16077iZGE2#..CVFC200909-201204

WD=1.6,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iZGE20,21..18S,18X,20X; ZGE21..20G200909-201204

DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#

main53601-52010-C0iZGE22201212-201505

BLACK,TRIM1#

main53601-52010-C1iZGE20..18S; ZGE20..18X201612-201711

BLACK,TRIM1#; BLACK,TRIM1#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-68020iZGE21200909-201005

9011906939

main90119-06939

9046906005

main90469-06005

9155180820

main91551-80820

9167180612

main91671-80612

15 parts on this diagram · 1 diagram in section
