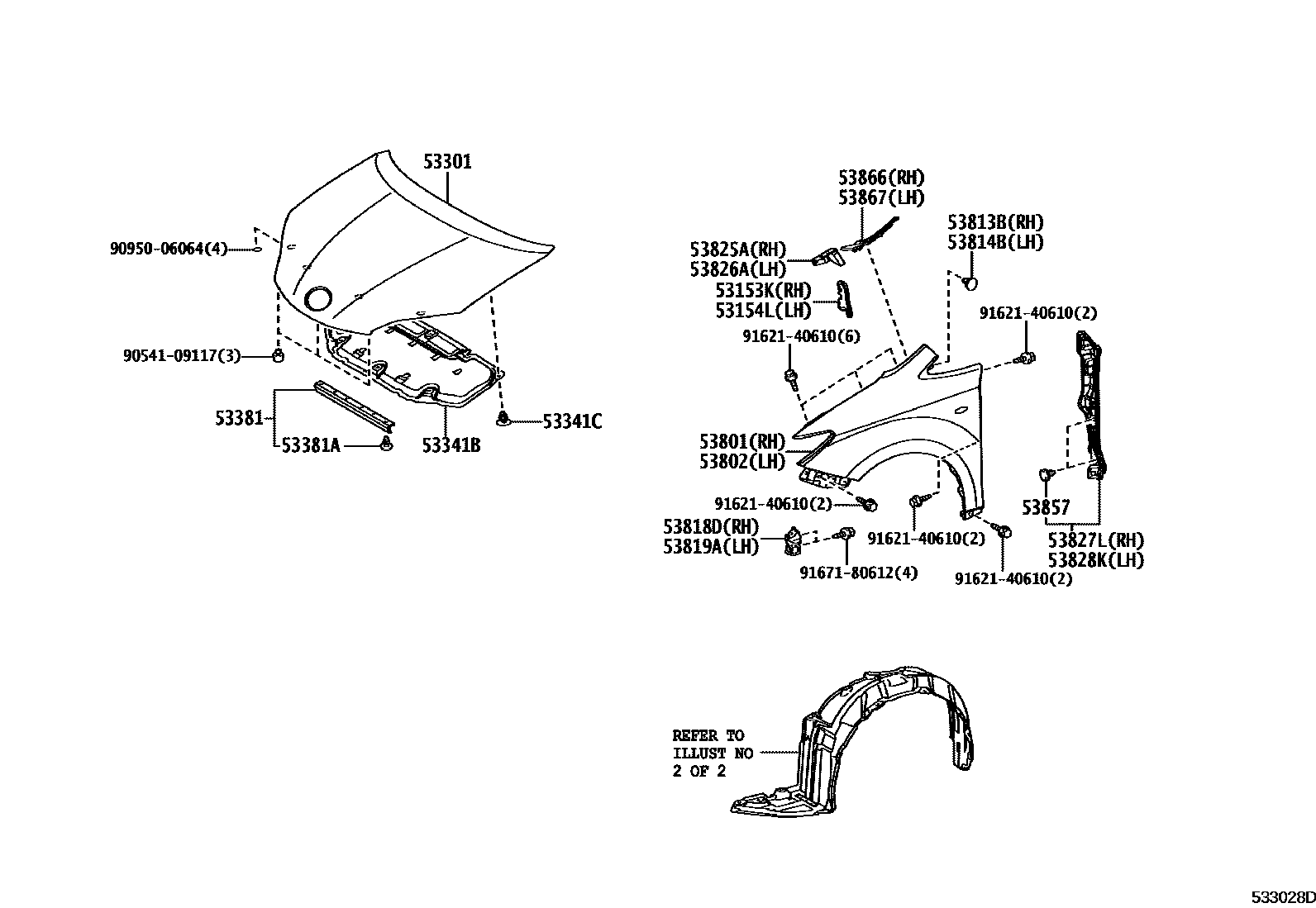

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53813BEXTENSION, FRONT FENDER, RH
53814BEXTENSION, FRONT FENDER, LH
53818DREINFORCEMENT, FRONT FENDER, REAR RH
53819AREINFORCEMENT, FRONT FENDER, REAR LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
9054109117
main90541-09117
9095006064
main90950-06064
9162140610
main91621-40610
9167180612
main91671-80612
24 parts on this diagram · 3 diagrams in section
