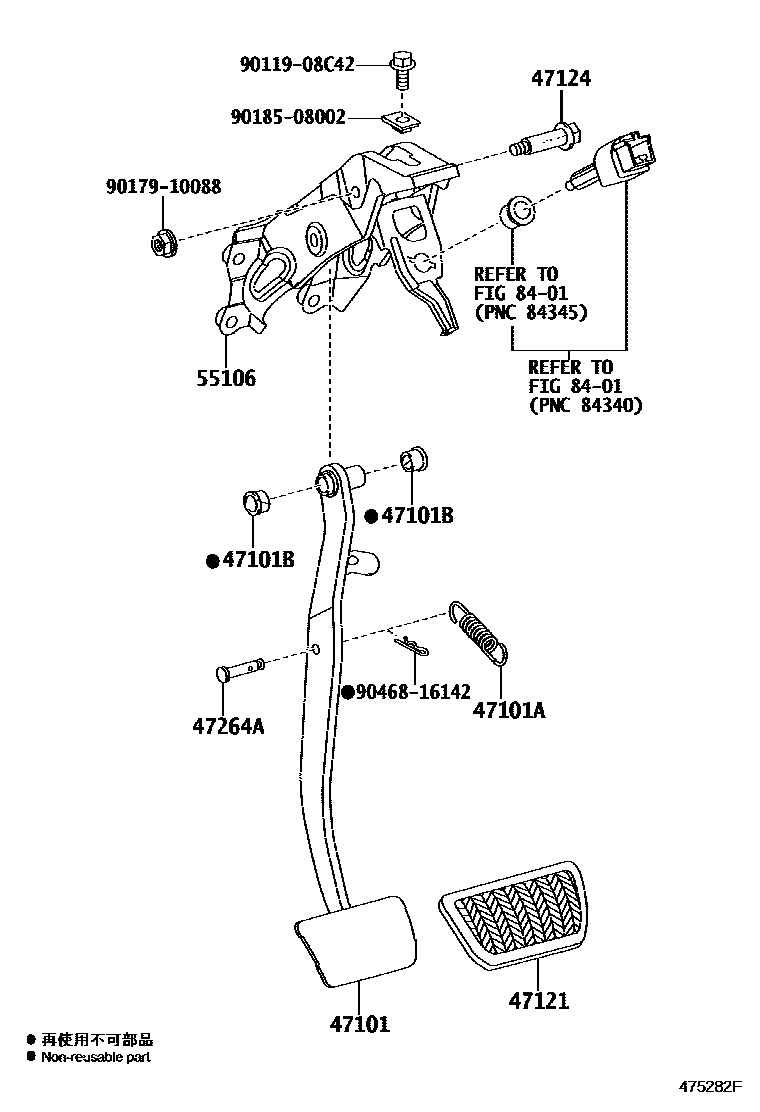

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12681iZGE21200909-201005

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14054iZGE21200909-201005

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iZGE21200909-201005

47121PAD, BRAKE PEDAL

main47121-42010iZGE21200909-201005

47124SHAFT, BRAKE PEDAL

main90109-10174iZGE21200909-201005

47264APIN(FOR PUSH ROD)

main90249-08256iZGE21200909-201005

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12700iZGE21200909-201005

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

12 parts on this diagram · 1 diagram in section
