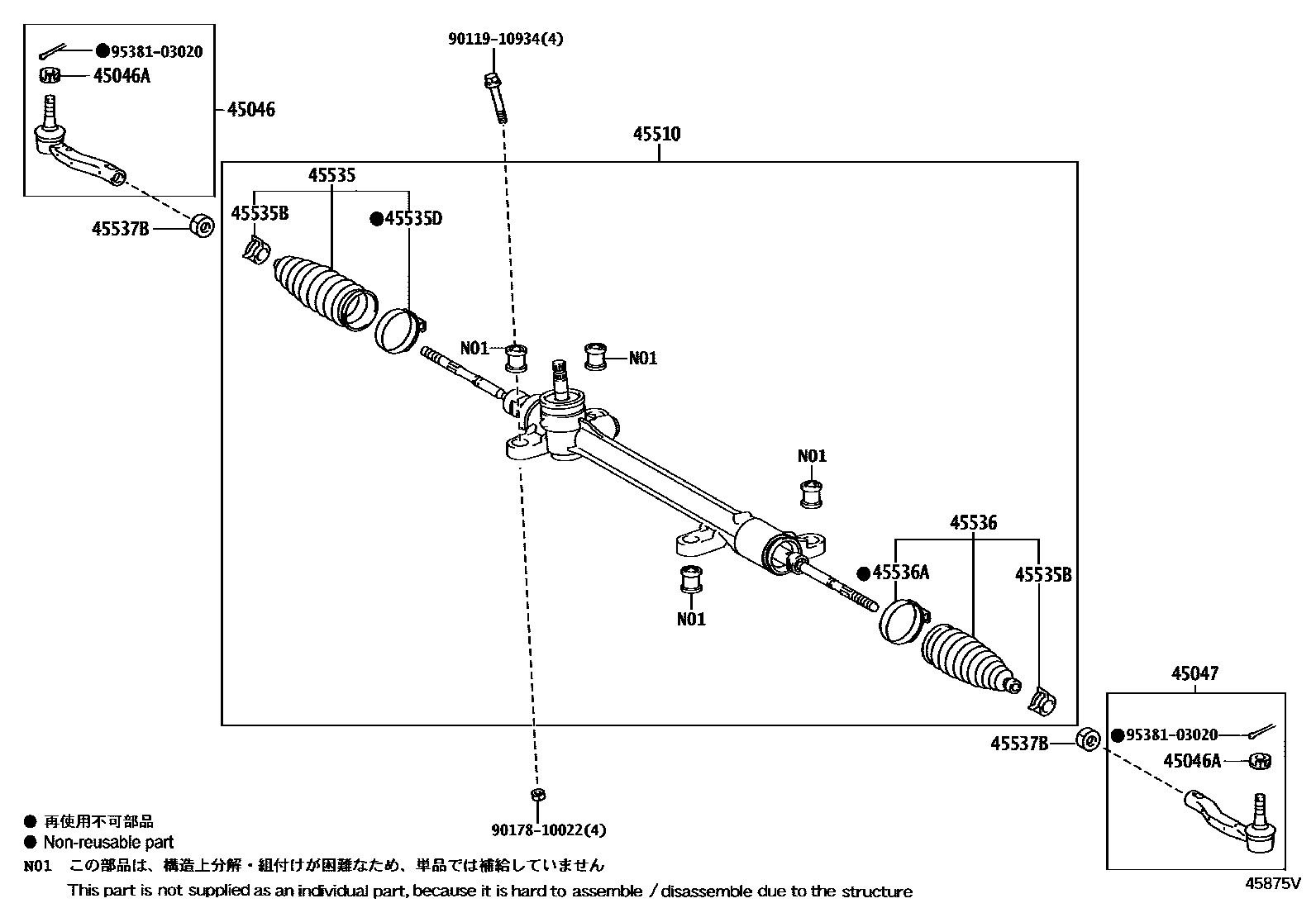

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-59205iZGE20..18X201204

main45047-49025iZGE2#..18S,20Z201204

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iZGE21200909-201005

45047END SUB-ASSY, TIE ROD, LH

main45046-49095iZGE2#..18S,20Z201204

main45047-59145iZGE20,21..CVFC..(18X,20G)200909-201204

45510GEAR ASSY, STEERING

main45510-68020iZGE21200909-201005

main45510-68021iZGE20..18X201305

main45510-68030iZGE20..18S201006-201204

main45510-68031iZGE20..18S201305

main45510-68040iZGE22201204-201505

45535BOOT, STEERING RACK, NO.1

main45535-29015iZGE21200909-201005

main45535-59025iZGE20,22..18S,20Z201006-201204

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iZGE21200909-201005

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iZGE21200909-201005

45536BOOT, STEERING RACK, NO.2

main45535-29015iZGE21200909-201005

main45535-59025iZGE20,22..18S,20Z201006-201204

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iZGE21200909-201005

45537BNUT, RACK END LOCK

main90170-15001×2iZGE2#200909-201204

main90179-15006×2iZGE2#201308

9011910934

main90119-10934

9017810022

main90178-10022

9538103020

main95381-03020

13 parts on this diagram · 1 diagram in section
