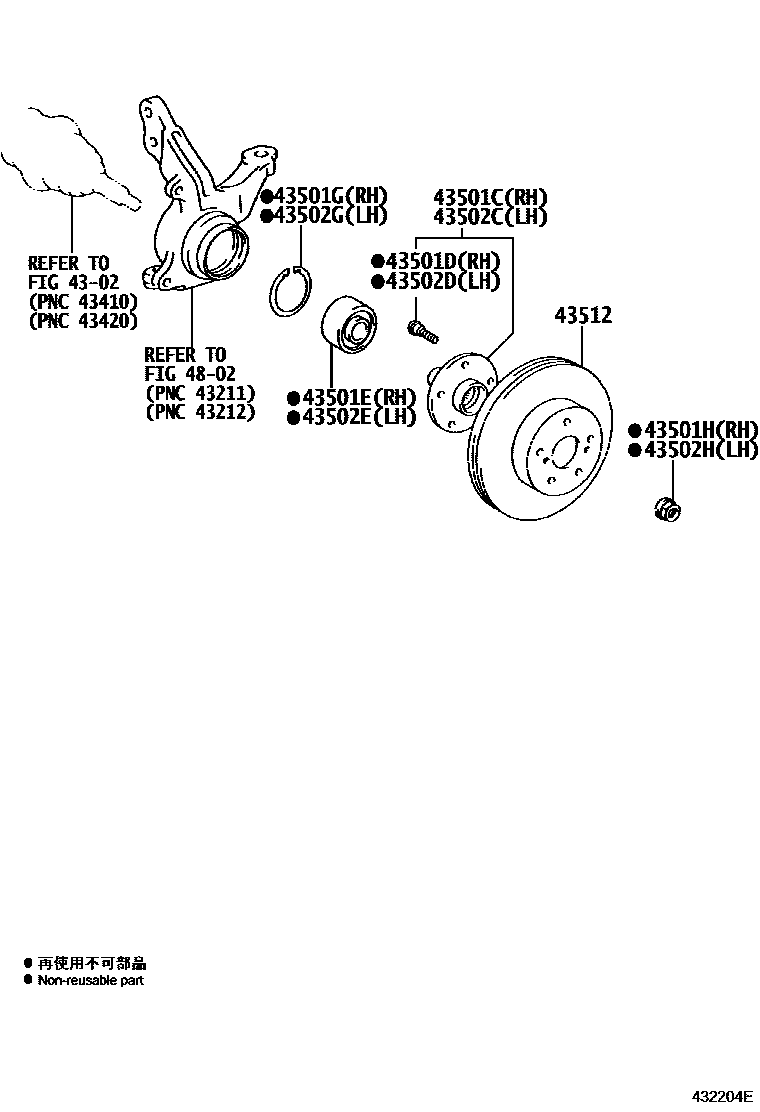

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-21010iZGE2#..18S,20Z201006-201204

main43502-32080iZGE20..18X200909-201204

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZGE21200909-201204

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066iZGE2#..CVFC200909-201204

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iZGE21200909-201204

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZGE21200909-201204

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-21010iZGE20,22..18S,20Z201006-201204

main43502-32080iZGE20,21..CVFC..(18X,20G)200909-201204

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZGE21200909-201204

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066iZGE21200909-201204

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iZGE21200909-201204

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZGE21200909-201204

43512DISC, FRONT

main43512-68020iZGE2#200909-201711

4802

13 parts on this diagram · 1 diagram in section
