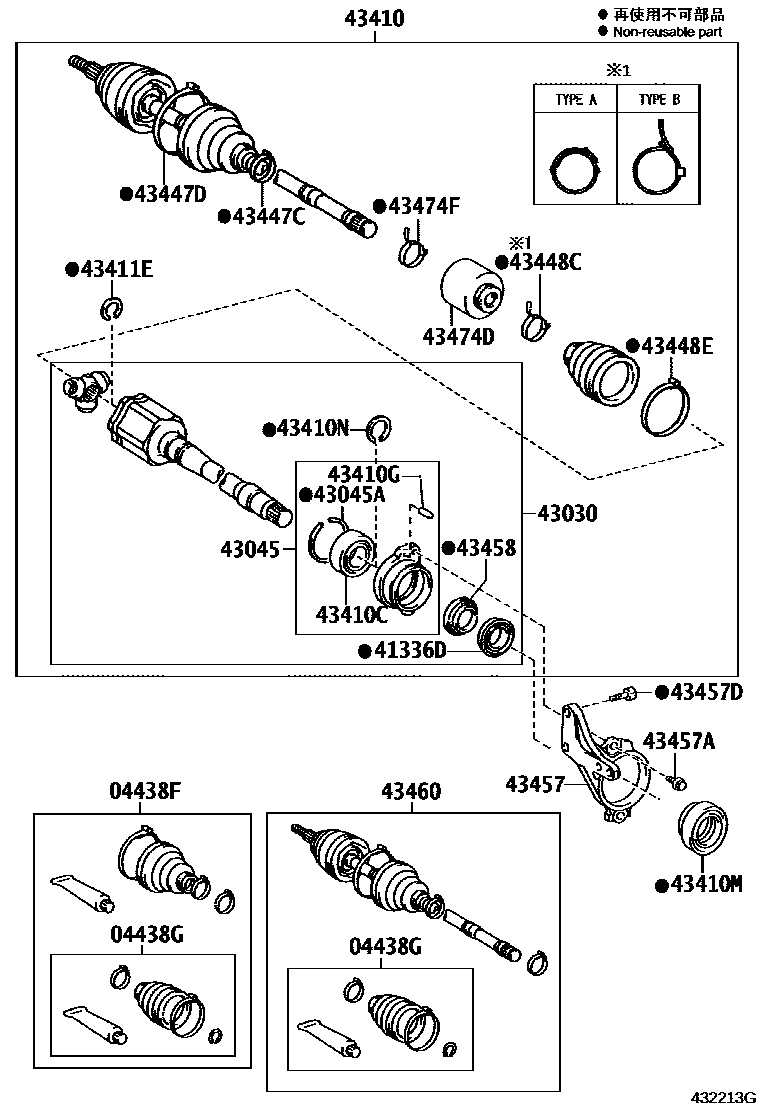

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
sub04427-12772
sub04427-44041
sub04427-44062
sub04428-12780
sub04428-42070
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
TYPE A:REFER ILLUST.
43045CASE SUB ASSY, DRIVE SHAFT BEARING
43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
43410SHAFT ASSY, FRONT DRIVE, RH
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
sub43410-28131
sub43410-44041
sub43410-44042
43410CBEARING (FOR FRONT DRIVE SHAFT)
43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX22-19.5
43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43458COVER, FRONT DRIVE SHAFT DUST
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
sub43460-80159
sub43460-80161
sub43460-80168
sub43460-80170
43474DAMPER, DRIVE SHAFT
(J)
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
24 parts on this diagram · 4 diagrams in section
