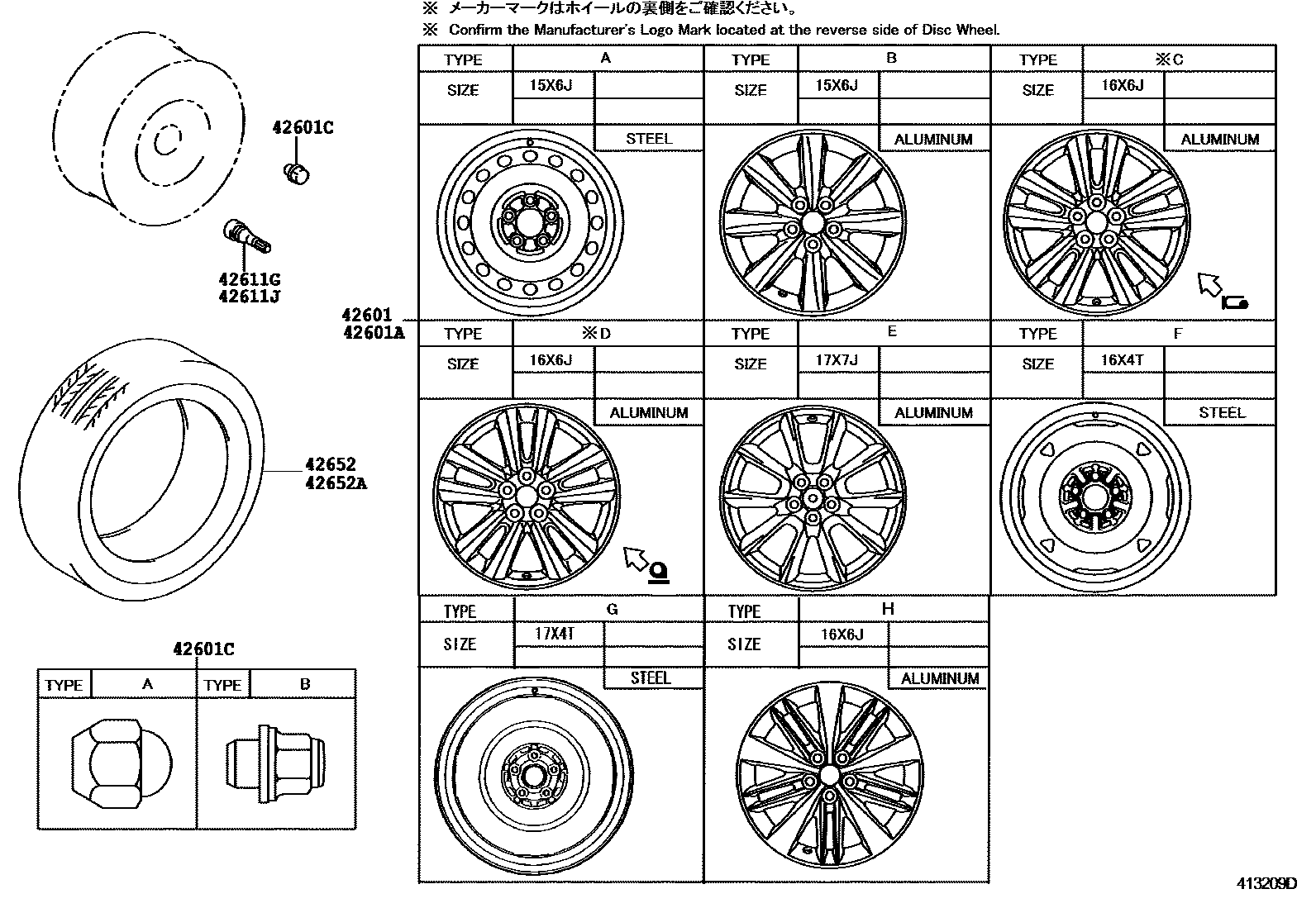

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X6J, #,TYPE A:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
16X6J,#,TYPE C:REFER ILLUST.
16X6J,TYPE D:REFER ILLUST.
17X7J,TYPE E:REFER ILLUST.
16X6J,TYPE H:REFER ILLUST.
17X7J,*DMEP,TYPE E:REFER ILLUST.
15X6J,*DMEP,SINGAPORE SPEC,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
15X6J, #,TYPE A:REFER ILLUST.
16X4T,TYPE F:REFER ILLUST.
17X4T,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-195/65R15 6J ALUMI,TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
195/65R15,*D/L
215/50R17 91V *D/L
195/60R16,*Y/H
42652ATIRE (FOR SPARE)
T135/80D16,*D/L
T135/80D16,*T/Y
T125/70D17 *Y/H
T125/70D17 *Y/H,SINGAPORE SPEC
T125/70D17 *Y/H,SINGAPORE SPEC
7 parts on this diagram · 3 diagrams in section
