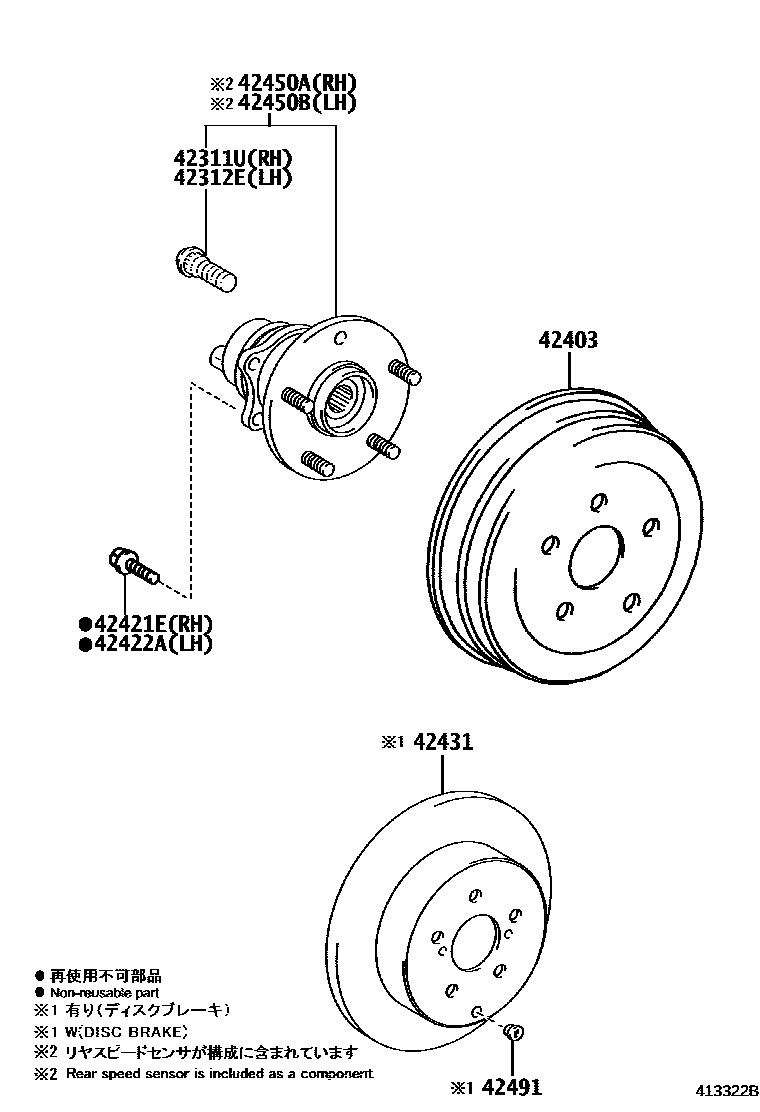

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iZGE21200909-201005

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iZGE21200909-201005

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12300×2iZGE20..18X201006-201204

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10502×4iZGE22201006-201204

main90105-10507×4iZGE20..18X201006-201204

main90105-10559×4supersedes 90105-10507iZGE20..18S; ZGE20..18X201204

SINGAPORE SPEC

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10502×4iZGE22201204-201505

main90105-10507×4iZGE20..18X201006-201204

main90105-10559×4supersedes 90105-10507iZGE21200909-201005

42431DISC, REAR

main42431-21011×2iZGE2#..18S,20G,20X,20Z200909-201204

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-20080iZGE2#200909-201204

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-20080iZGE2#200909-201204

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iZGE2#..18S,20G,20X,20Z200909-201204

9 parts on this diagram · 1 diagram in section
