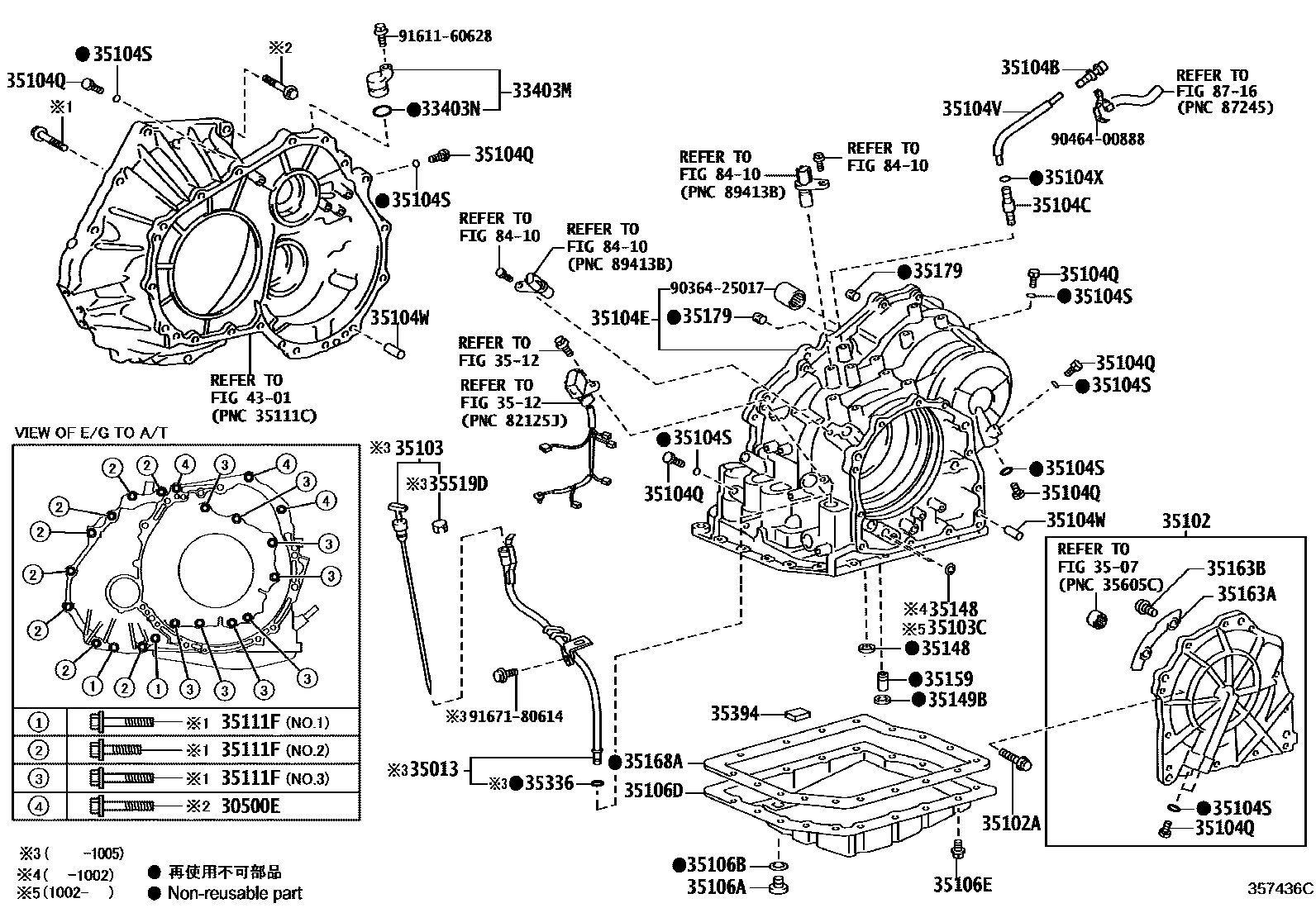

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main91512-61045×3iZGE21200909-201005

*10-1.25PX45-30

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iZGE21200909-201005

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iZGE21200909-201005

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-68010iZGE21..4FC200909-201005

3507

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-44010iZGE21200909-201005

sub35102-42020

sub35102-42H00

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iZGE21200909-201005

*8-1.25PX30-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-68010iZGE21..4FC200909-201005

35103CRING, O

main90301-10189×2iZGE21201002-201005

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iZGE21200909-201005

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157iZGE21200909-201005

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33091iZGE21200909-201002

main35104-33092iZGE21201002-201005

sub35104-28093

sub35104-33081

sub35422-33040

sub82123-28431

sub82715-44520

sub90105-08066

sub90119-08868

sub90301-19016

sub90301-30007

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iZGE21200909-201005

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×8iZGE21200909-201005

35104VHOSE (FOR BREATHER PLUG)

main35121-21020iZGE21200909-201005

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10036×4iZGE21200909-201005

sub90250-10232

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iZGE21200909-201005

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iZGE21200909-201005

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iZGE21200909-201005

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33030iZGE21200909-201005

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iZGE21200909-201005

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-06320×2iZGE21200909-201005

*6-1.00PX50-25,NO.1

main90105-08233×8iZGE21200909-201005

*8-1.25PX42-30,NO.2

main90105-08353×8iZGE21200909-201005

*8-1.25PX50-30,NO.3

3512

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010×3iZGE21200909-201002

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iZGE21200909-201005

35159GASKET, BRAKE DRUM

main35159-21010iZGE21200909-201005

35163APLATE, TRANSAXLE REAR COVER

main35163-28010iZGE21200909-201005

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iZGE21200909-201005

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21020iZGE21200909-201005

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iZGE21200909-201002

main90301-06008×2iZGE21201002-201005

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iZGE21..4FC200909-201005

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iZGE21200909-201005

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-41010iZGE21..4FC200909-201005

4301

8410

8716

9036425017

main90364-25017

9046400888

main90464-00888

9161160628

main91611-60628

9167180614

main91671-80614

40 parts on this diagram · 1 diagram in section
