TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

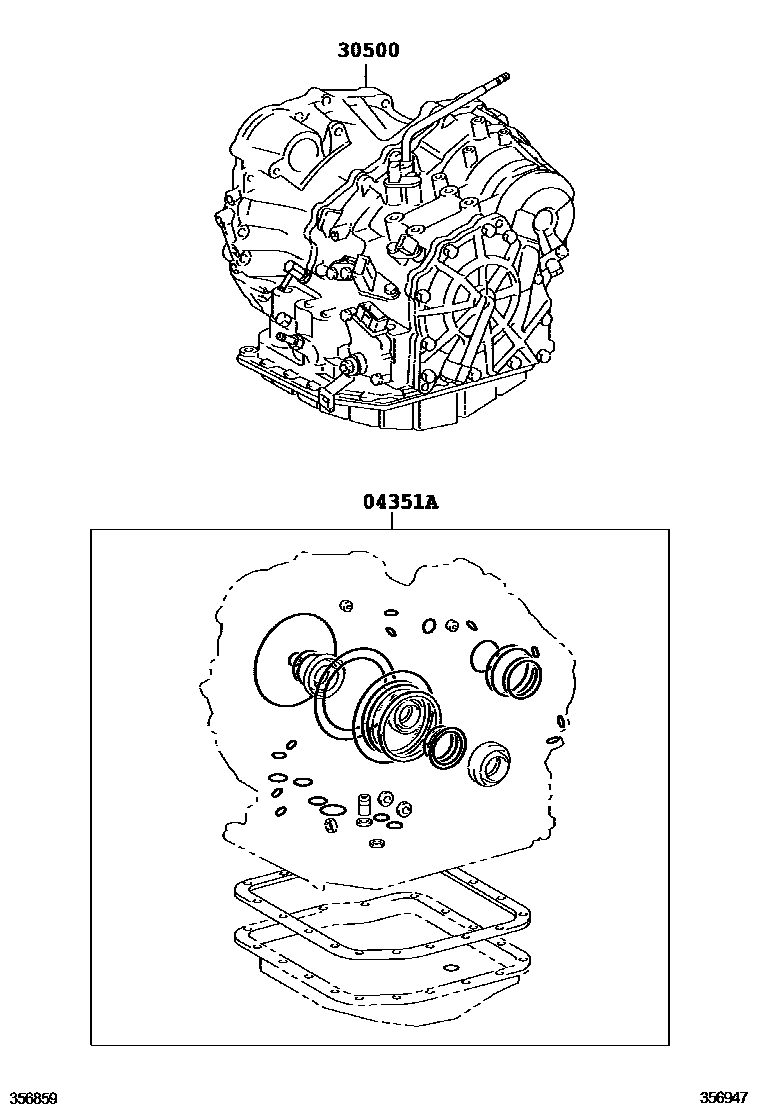

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48150i200909-201002

main04351-48151i201002-201005

30500TRANSAXLE ASSY, AUTOMATIC

main30500-68110i200909-201005

U241E

2 parts on this diagram · 1 diagram in section
