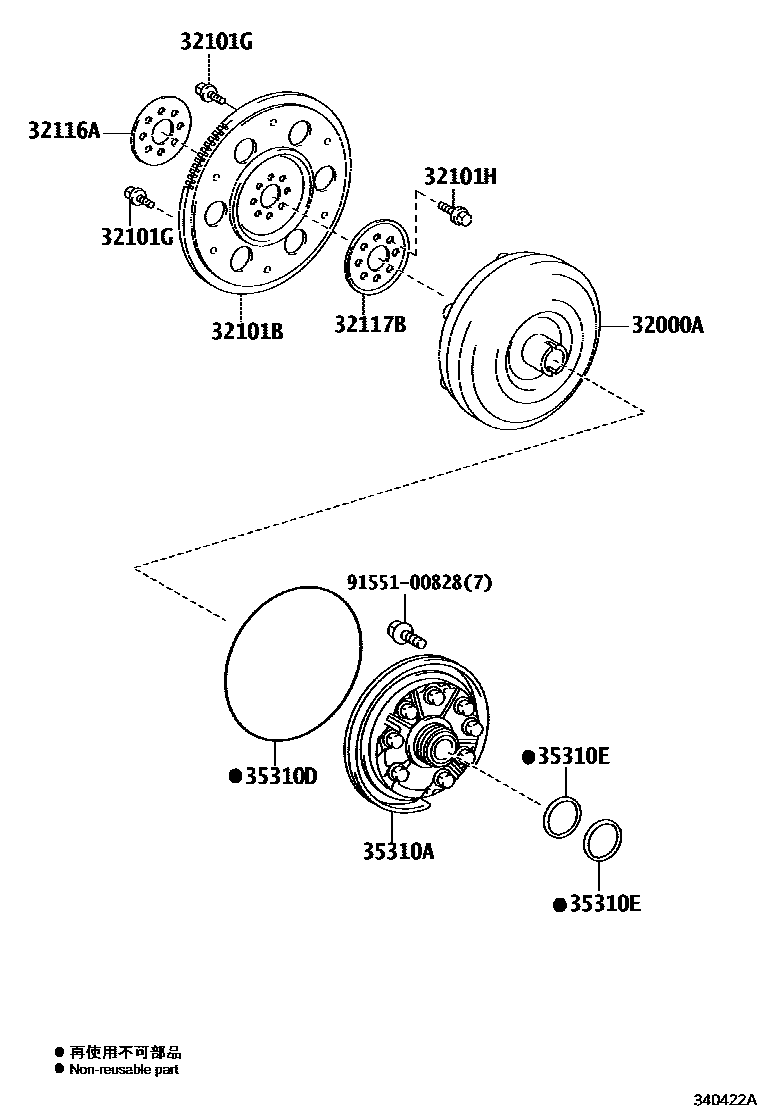

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K311,K311F 0002 1K111

32000ACONVERTER ASSY, TORQUE

main32000-12400iZGE20201204-201711

main32000-28180iZGE22201204-201505

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZGE20201006-201204

main32101-28050iZGE22201204-201505

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZGE20201204-201711

*8-1.25PX12-8.4,BLACK

main90109-09001iZGE22201204-201505

*9-1.25PX12.4-7.3,BLACK

main90119-08498×5iZGE20201006-201204

*8-1.25PX12-8,YELLOW

main90119-09025×5iZGE22201204-201505

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZGE2#201006-201204

(J)

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZGE20201006-201204

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZGE20201006-201204

35310APUMP ASSY, FRONT OIL

main35310-12121iZGE20..18X201204-201711

TMH

main35310-12150iZGE20..18X201207-201404

AISIN AW

main35310-28030iZGE22201204-201303

main35310-28031iZGE22201303-201505

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99090iZGE21,22201006-201204

main90301-99133iZGE20..18X201204-201701

main90301-99202iZGE20..18X201702-201711

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12030×2iZGE20..18X201204-201611

main35617-12031×2iZGE20..18X201611-201711

main35617-28020×2iZGE22201211-201505

main35617-44010×2iZGE22201204-201211

9155100828

main91551-00828

10 parts on this diagram · 2 diagrams in section
