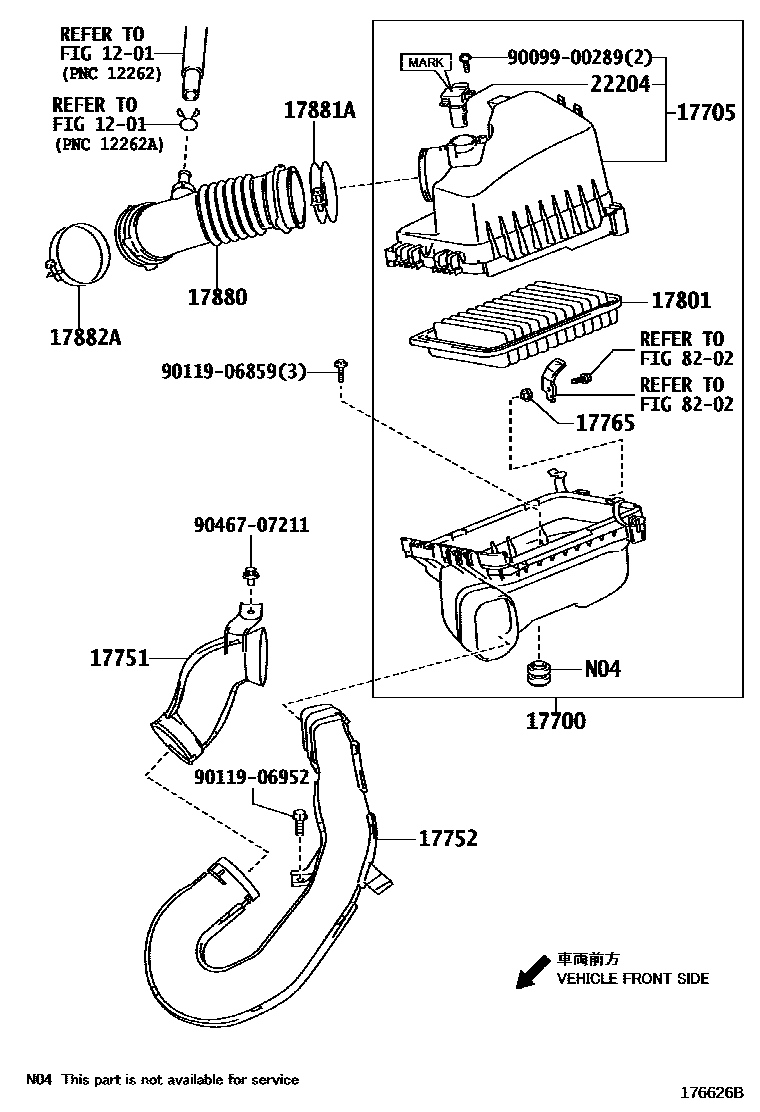

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-37211i2ZRFAE,3ZRFAE..ZGE2#200909-201204

17705CAP SUB-ASSY, AIR CLEANER

main17705-37081i3ZRFE..ZGE21200909-201103

main17705-37082i2ZRFAE,3ZRFAE..ZGE2#201104-201204

17751INLET, AIR CLEANER, NO.1

main17751-37080i3ZRFE..ZGE21200909-201204

17752INLET, AIR CLEANER, NO.2

main17752-37090i2ZRFAE,3ZRFAE..ZGE2#200909-201204

17765STAY, AIR CLEANER, NO.1

main17706-21010i2ZRFAE,3ZRFAE..ZGE2#200909-201204

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i2ZRFAE,3ZRFAE..ZGE2#200909-201204

17880HOSE ASSY, AIR CLEANER

main17880-37090i3ZRFAE..ZGE21,22201006-201204

main17880-37120i2ZRFAE..ZGE20201204

main17880-37130i3ZRFAE..ZGE22201204-201505

main17880-37140i2ZRFAE..ZGE20201006-201204

main17880-37150i3ZRFE..ZGE21200909-201005

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i3ZRFE..ZGE21200909-201204

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10750i2ZRFAE,3ZRFAE..ZGE2#201204

main96111-10780i3ZRFE..ZGE21200909-201204

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ZRFAE,3ZRFAE..ZGE2#201104-201204

MARK 22204-0T040

main22204-0V010i2ZRFAE,3ZRFAE..ZGE2#201104-201204

MARK 22204-0V010

main22204-0V020i2ZRFAE,3ZRFAE..ZGE2#201104-201204

MARK 22204-0V020

main22204-28010i2ZRFAE,3ZRFAE..ZGE2#201104-201204

MARK 22204-28010

main22204-37010i2ZRFAE,3ZRFAE..ZGE2#200909-201103

8202WIRING & CLAMP

→ Go to FIG 82-02

9009900289

main90099-00289

9011906859

main90119-06859

9011906952

main90119-06952

9046707211

main90467-07211

16 parts on this diagram · 2 diagrams in section
