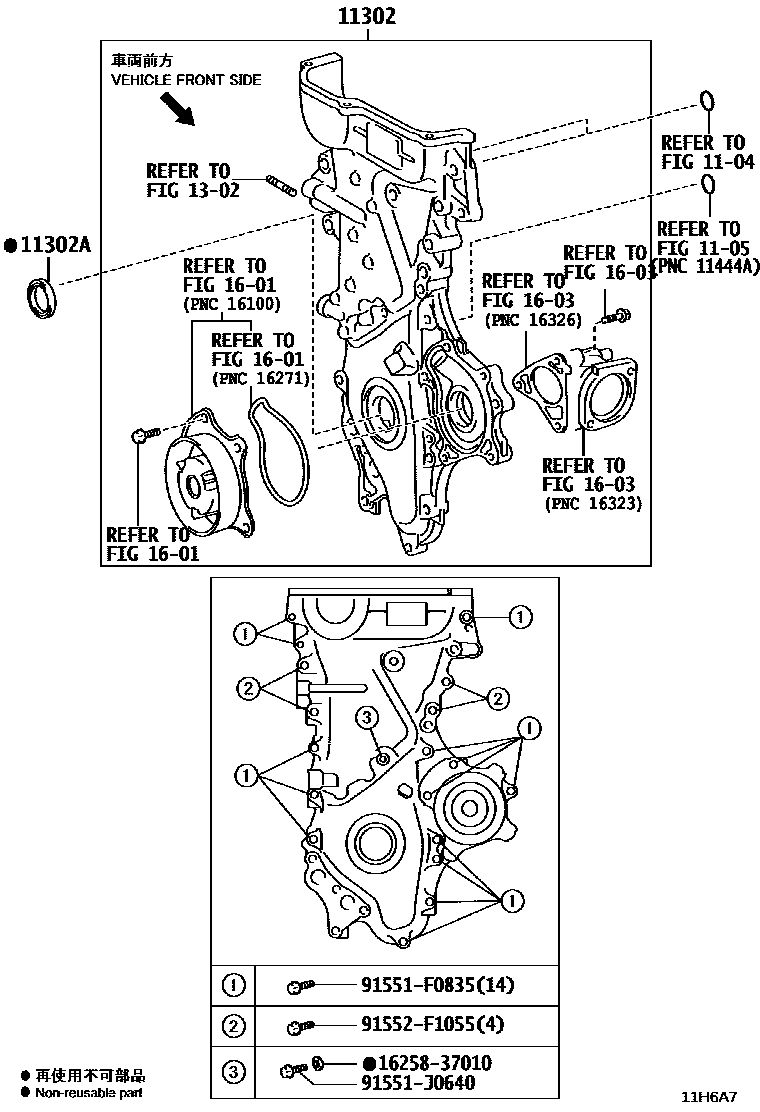

TIMING GEAR COVER & REAR END PLATE

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37010i2ZRFAE..ZGE20201006-201201

main11310-37011i2ZRFAE..ZGE20201201-201204

main11310-37031i3ZRFAE..ZGE21,22200909-201201

main11310-37032i3ZRFAE..ZGE21,22201201-201204

main11310-37040i2ZRFAE..ZGE20201204

main11310-37070i3ZRFAE..ZGE22201204-201505

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38089i3ZRFE..ZGE21200909-201005

main90311-38096i2ZRFAE,3ZRFAE..ZGE2#201110-201204

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

11 parts on this diagram · 1 diagram in section
