ENGINE OVERHAUL GASKET KIT

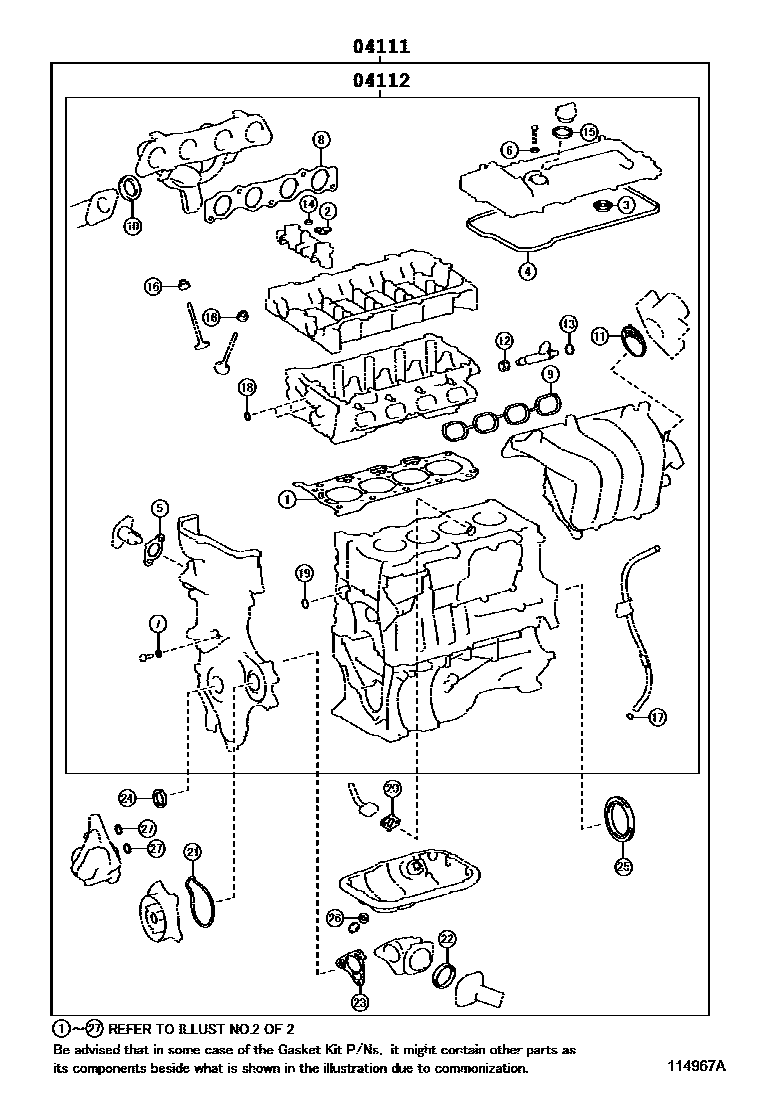

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-37181i200909-201005

main04111-37201i201006-201110

main04111-37203i201110-201203

main04111-37204i201203-201204

main04111-37271i201006-201110

main04111-37273i201110-201202

main04111-37274i201203-201204

main04111-37402i201204-201502

main04111-37403i201502

main04111-37422i201204-201502

main04111-37423i201502-201505

04112GASKET KIT, ENGINE VALVE GRIND

main04112-37073i201004-201005

main04112-37161i200909-201004

main04112-37221i201006-201110

main04112-37222i201110-201203

main04112-37223i201203-201204

main04112-37224i201502

2 parts on this diagram · 6 diagrams in section
