SHORT BLOCK ASSEMBLY

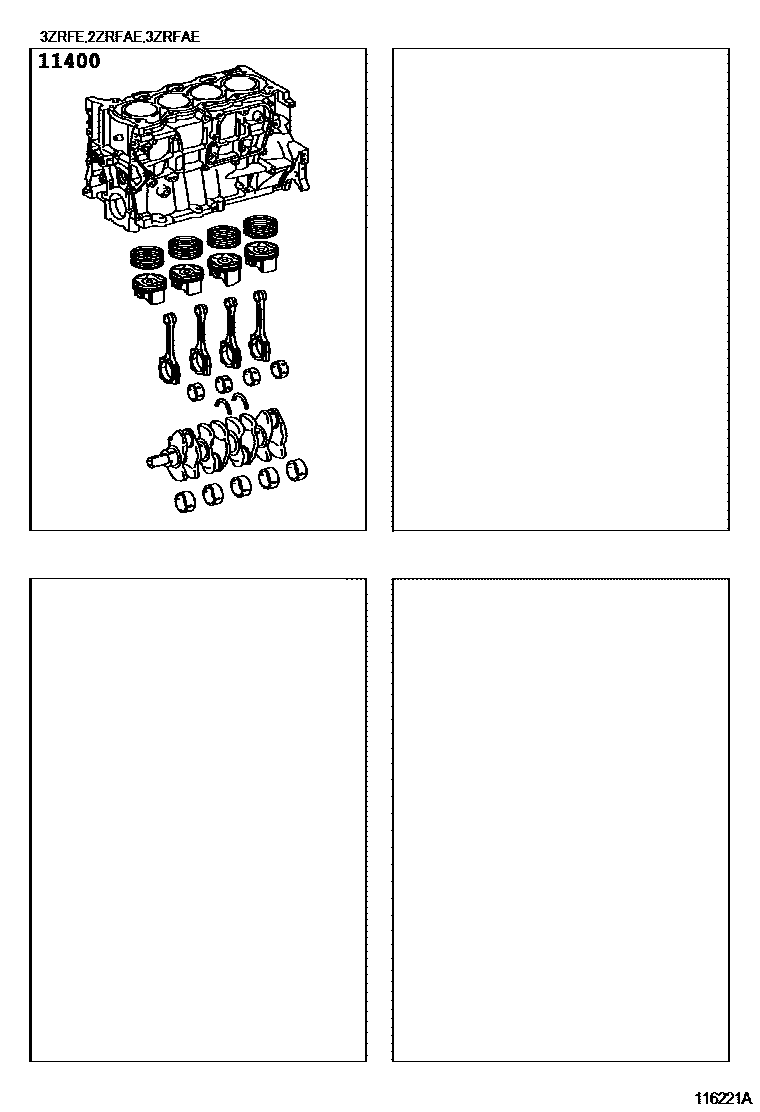

Parts diagram

11400BLOCK ASSY, SHORT

main11400-37081i201006-201204

main11400-37090i200909-201005

main11400-37190i201204

main11400-37200i201204-201505

1 parts on this diagram · 1 diagram in section
