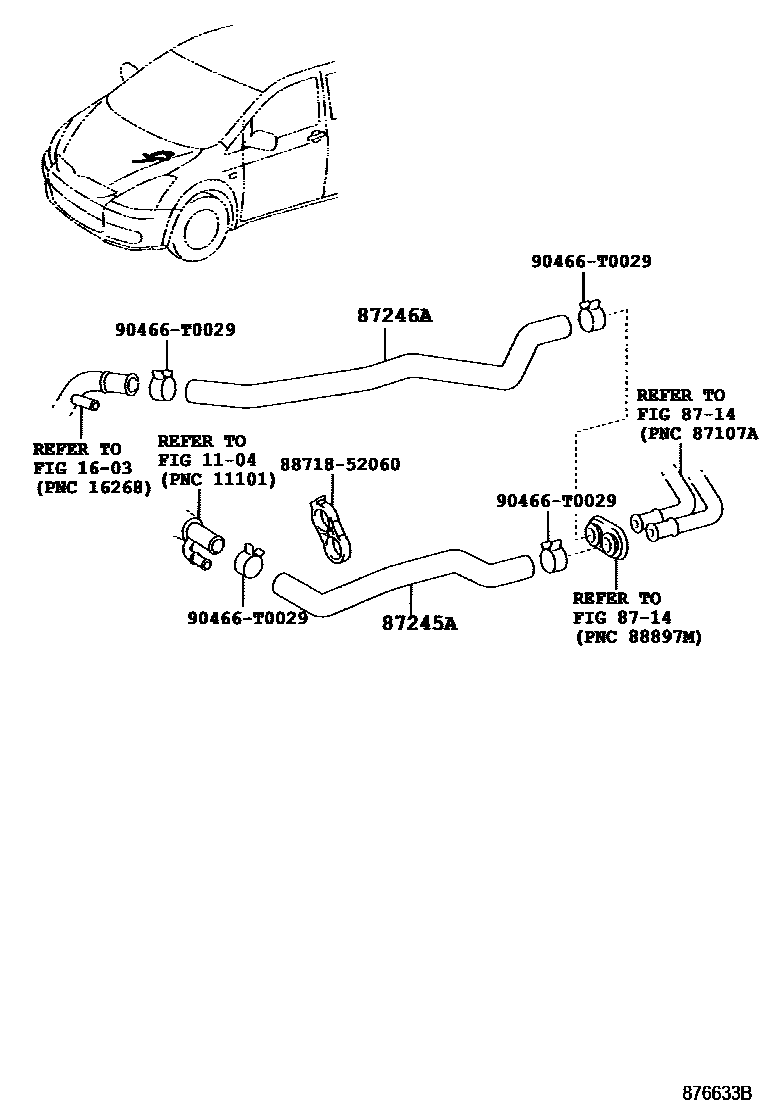

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-0M010iANE1#..TAIW200408-200703

main87245-2D682iZNE10200804-200903

main87245-68010iANE11..TH200312-200512

87246AHOSE, HEATER WATER, OUTLET A

main87245-0M020iANE1#..TAIW200408-200703

main87245-68020iANE11..TH200312-200512

main87245-68051iZNE10200804-200903

8871852060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52060

90466T0029

main90466-T0029
