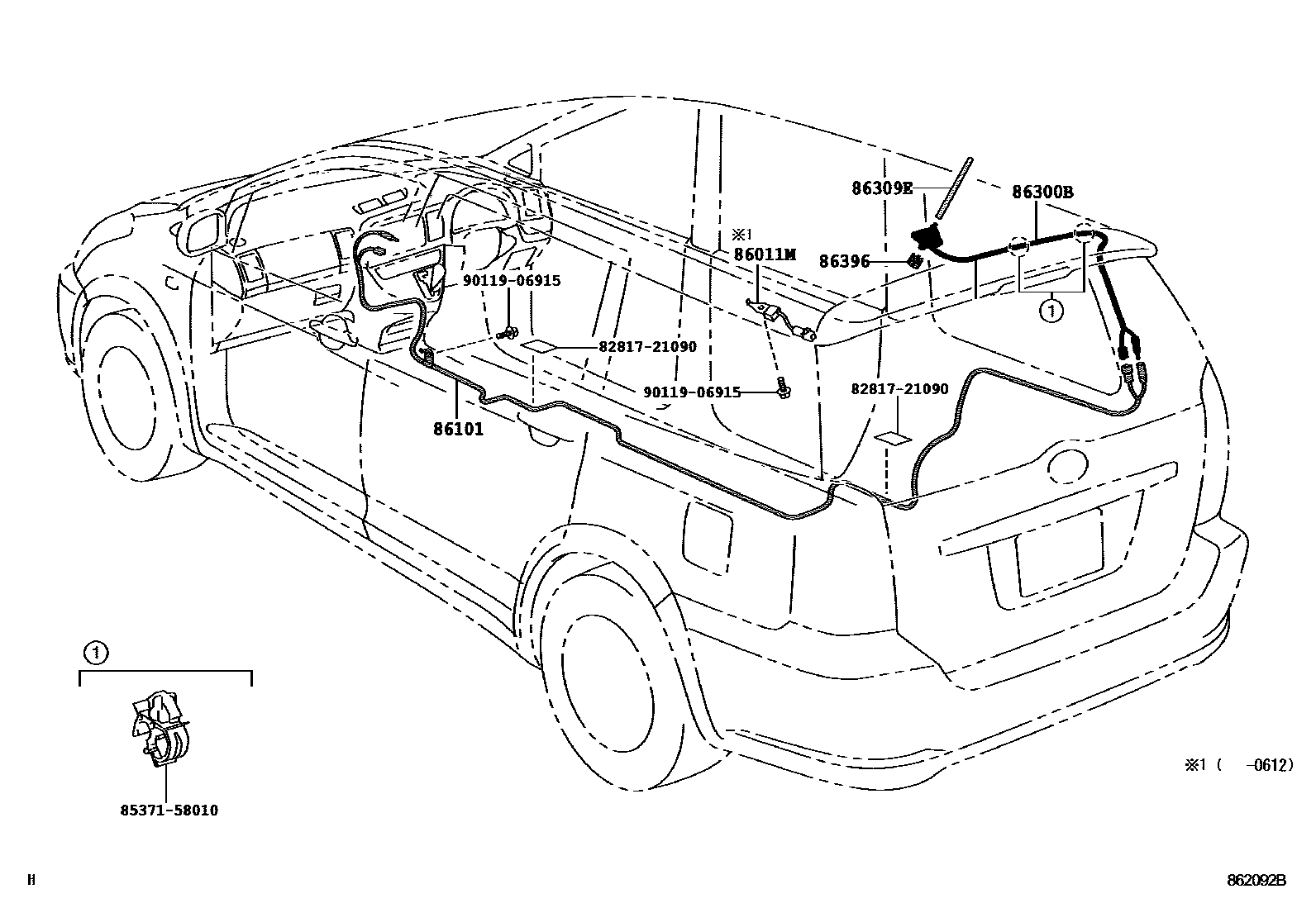

ANTENNA

86011MFILTER, NOISE

main90980-04134iANE12;ANE11..06S200312-200612

86101CORD SUB-ASSY, ANTENNA

main86101-68010iANE11,ZNE10..RHD200512

main86101-68040iANE1#..TAIW200703

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-68030iANE11..TH200312-200512

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-48040iANE11..TH200312-200512

86396NUT, ANTENNA

main86396-0D020iANE11..TH200705

main86396-20040iANE11..TH200312-200512

8281721090PROTECTOR, WIRING HARNESS, NO.1

main82817-21090

8537158010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-58010

9011906915

main90119-06915

8 parts on this diagram · 1 diagram in section
