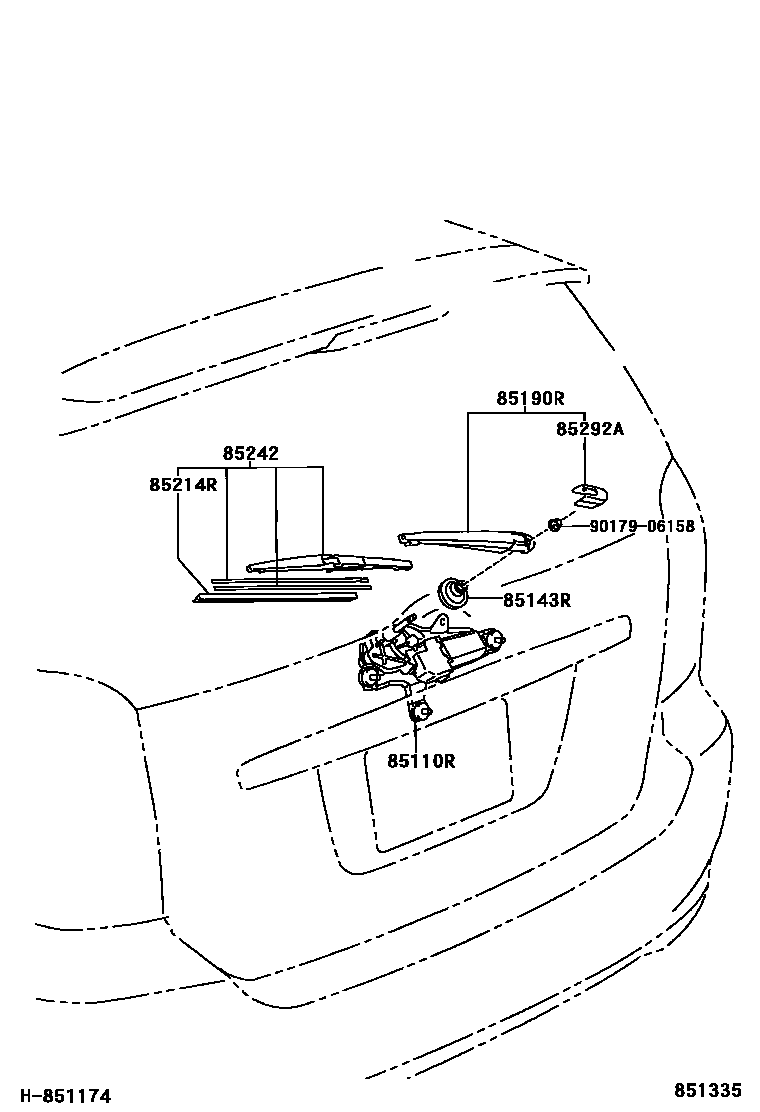

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-68010iANE11..TH200312-200512

85143RGROMMET, REAR WIPER MOTOR

main85143-42030iANE11..TH200312-200512

85190RARM ASSY, REAR WIPER

main85241-42040iANE12;ANE11..06S200312-200703

85214RRUBBER, REAR WIPER

main85214-42040iANE11..TH200312-200512

85242BLADE, RR WIPER

main85242-42020iANE11..TH200312-200512

85292ACAP, REAR WIPER ARM HEAD

main85292-28030iANE11..TH200312-200512

9017906158

main90179-06158

7 parts on this diagram · 1 diagram in section
