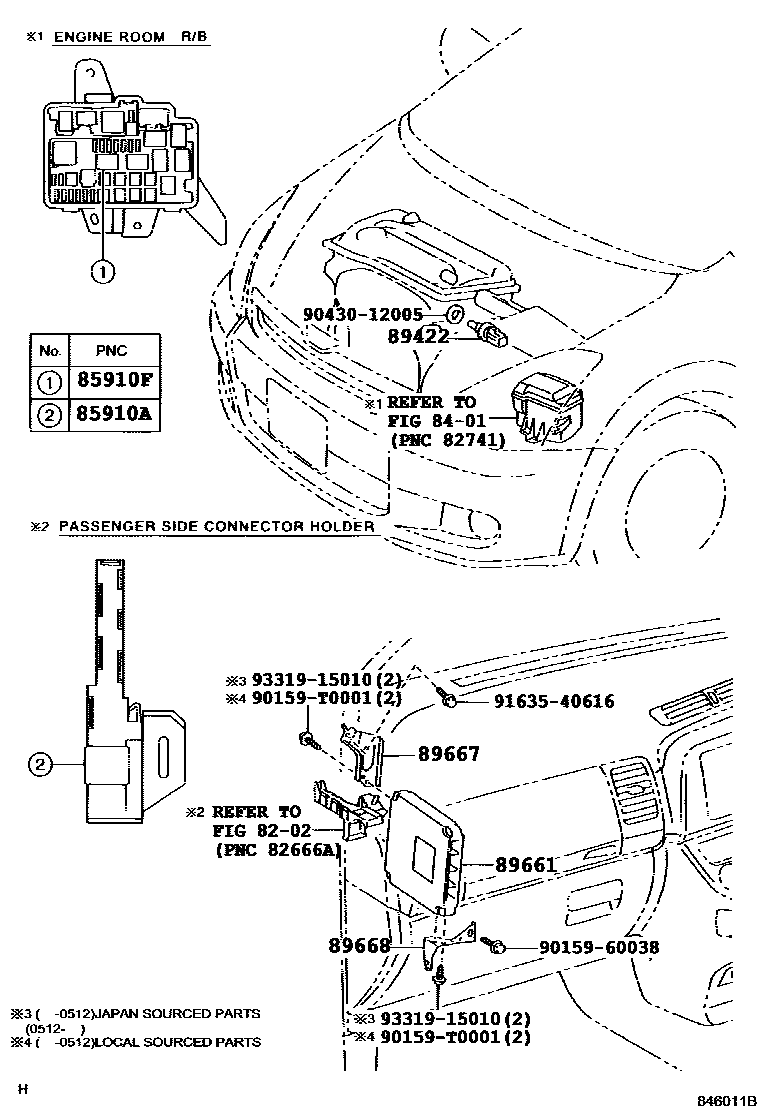

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02022iANE1#,ZNE10..GEN,TAIW200703-200909

main90987-02027iANE12;ANE11..06S200312-200703

85910FRELAY, COMPUTER (FOR EFI)

main90987-02022iANE1#,ZNE10..GEN,TAIW200703-200909

main90987-02027iANE12;ANE11..06S200312-200703

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iANE11..TH200312-200512

main89422-35010iZNE10200804-200903

89661COMPUTER, ENGINE CONTROL

main89661-68060iANE11200312-200406

main89661-68061iANE11..TH200512

main89661-68070iANE1#..TAIW200408-200703

main89661-68120iZNE10200804-200903

main89661-68140iANE1#..TAIW200703

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0M010iANE1#..TAIW200703

main89667-68020iANE11,ZNE10..RHD200512

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0M010iANE1#..TAIW200408-200703

main89668-68010iANE11..TH200312-200512

9015960038

main90159-60038

90159T0001

main90159-T0001

9043012005

main90430-12005

9163540616

main91635-40616

9331915010

main93319-15010

13 parts on this diagram · 2 diagrams in section
