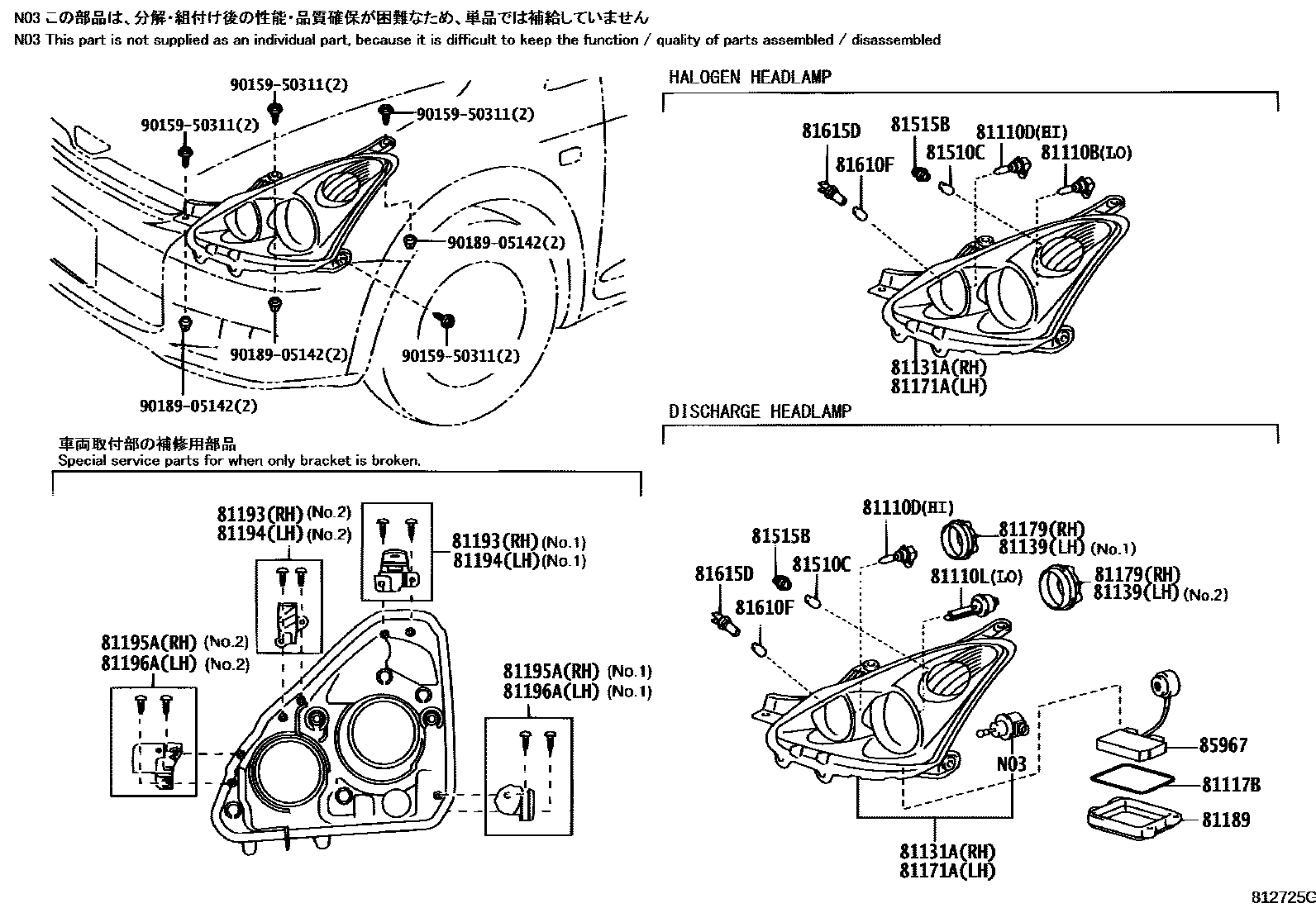

HEADLAMP
81110HEADLAMP ASSY, RH
2.0G
81110BBULB(FOR HEADLAMP, NO.1)
12V 51W,HALOGEN
12V 55W,HALOGEN; 12V 55W,HALOGEN,S PACKAGE
81110DBULB(FOR HEADLAMP, NO.2)
12V 65W
12V65W(SAE),60W(ECE)
81110LBULB, DISCHARGE HEADLAMP
85V 35W
85V 35W
85V 35W,2.0G
81117BGASKET
2.0G
81131AUNIT, HEADLAMP, RH
S PACKAGE
S PACKAGE
81139COVER, HEADLAMP SOCKET
NO.2
NO.1
2.0G,NO.1
2.0G,RH,NO.2
2.0G,LH,NO.2
81171AUNIT, HEADLAMP, LH
S PACKAGE
S PACKAGE
81179COVER, HEADLAMP SOCKET
81189COVER, HEADLAMP
2.0G
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
NO.1
NO.2
NO.1
NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
NO.1
NO.2
NO.1
NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
NO.1
NO.2
NO.1
NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
NO.1
NO.2
NO.1
NO.2
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85967COMPUTER, LIGHT CONTROL
9015950311
main90159-50311
9018905142
main90189-05142
21 parts on this diagram · 4 diagrams in section
