BATTERY CARRIER

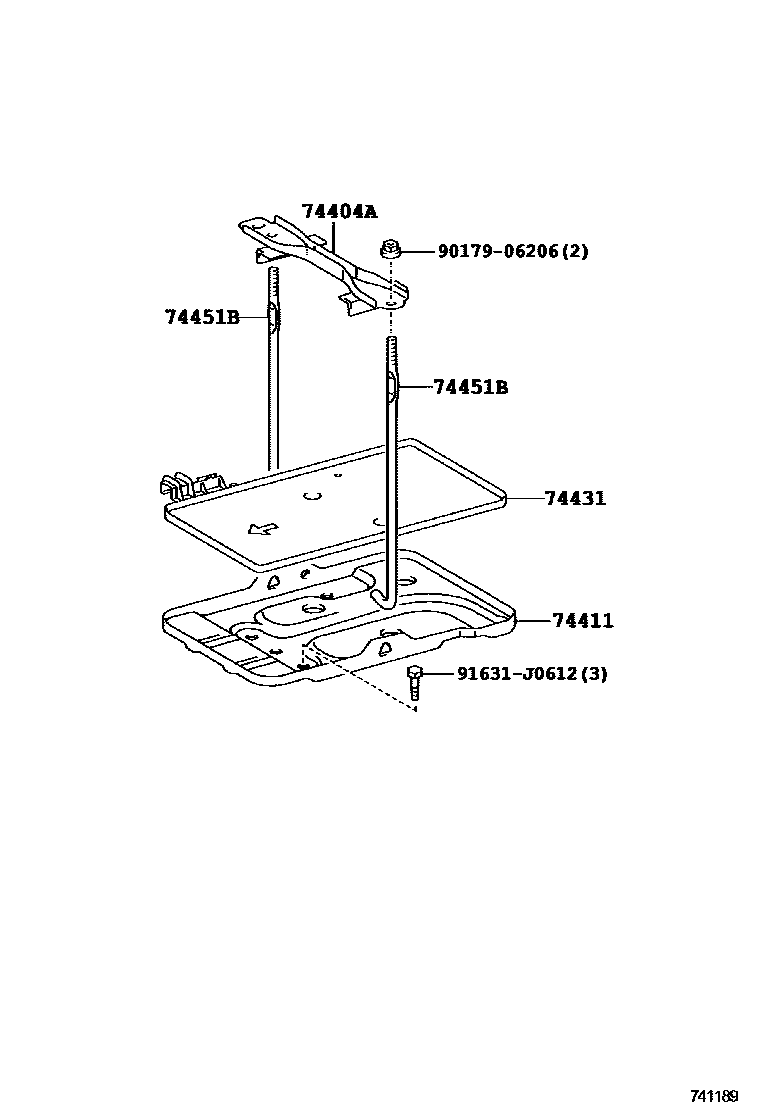

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-63010i200312-200512

74411CARRIER, BATTERY

main74411-63020i200312-200512

74431TRAY, BATTERY

main74431-20111i200312-200703

main74431-20120i200512

74451BBOLT, BATTERY CLAMP

main74451-20060×2i200312-200512

9017906206

main90179-06206

91631J0612

main91631-J0612

6 parts on this diagram · 1 diagram in section
