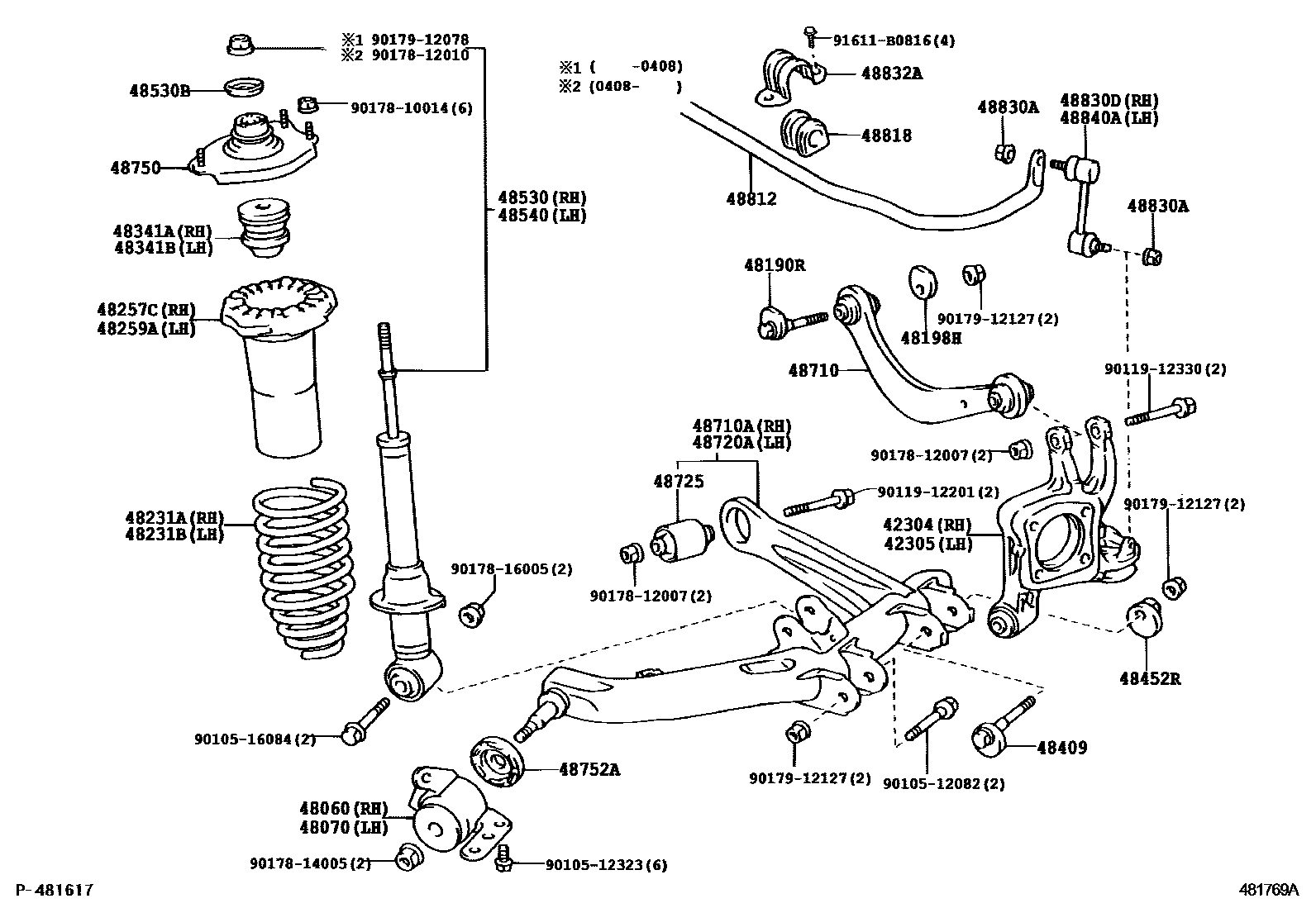

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48060BRACKET ASSY, REAR SUSPENSION ARM, RH
48070BRACKET ASSY, REAR SUSPENSION ARM, LH
48190RCAM ASSY, CAMBER ADJUST
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-68020
MARK 48530-68020
MARK 48530-68041
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-68020
MARK 48530-68020
MARK 48530-68041
48710ARM ASSY, UPPER CONTROL
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48725BUSH, LOWER CONTROL ARM
48750SUPPORT ASSY, REAR SUSPENSION
RH
RH
LH
LH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9010512082
main90105-12082
9010512323
main90105-12323
9010516084
main90105-16084
9011912201
main90119-12201
9011912330
main90119-12330
9017810014
main90178-10014
9017812007
main90178-12007
9017812010
main90178-12010
9017814005
main90178-14005
9017816005
main90178-16005
9017912078
main90179-12078
9017912127
main90179-12127
91611B0816
main91611-B0816
42 parts on this diagram · 2 diagrams in section
