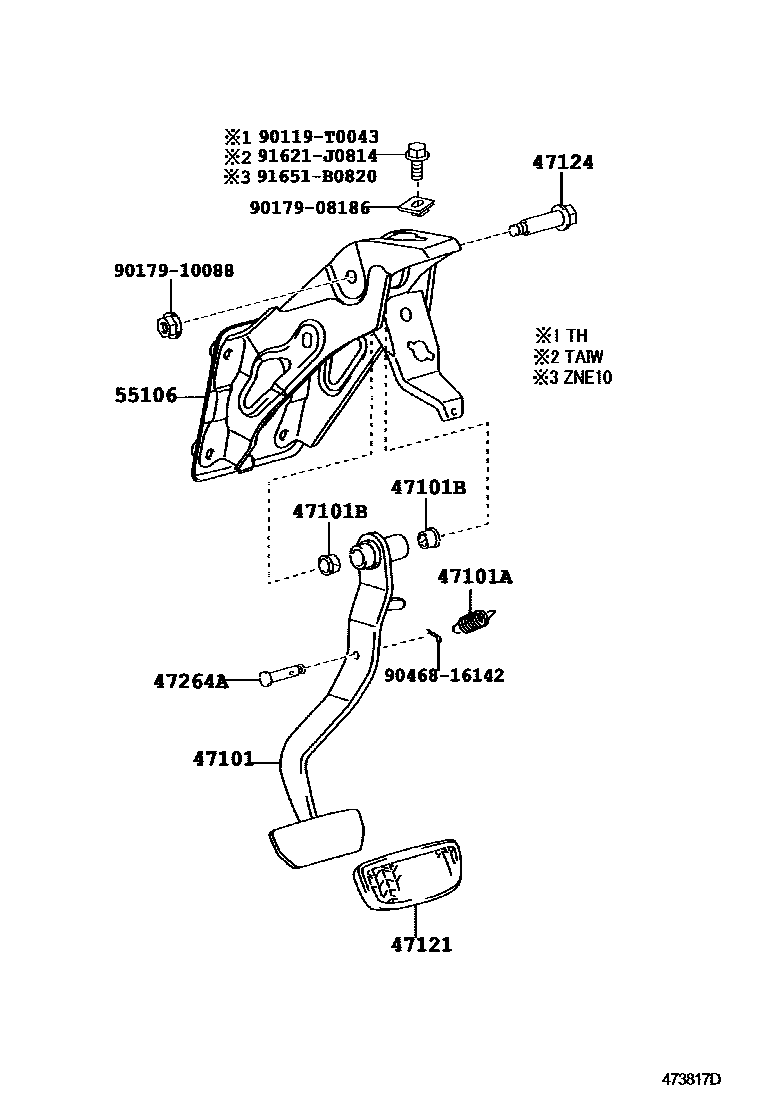

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0M010iANE1#..TAIW200408-200703

main47101-68010iANE11..TH200312-200512

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iANE1#..TAIW200312-200703

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iANE11..TH200312-200512

47121PAD, BRAKE PEDAL

main47121-02020iANE1#..TAIW200409-200703

main47121-52010iANE12200312-200409

47124SHAFT, BRAKE PEDAL

main90109-10174iANE1#..TAIW200312-200703

47264APIN(FOR PUSH ROD)

main90249-08051iANE1#,ZNE10200512

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0M010iANE1#..TAIW200408-200703

main55106-68010iANE11..TH200312-200512

90119T0043

main90119-T0043

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

91651B0820

main91651-B0820

13 parts on this diagram · 1 diagram in section
