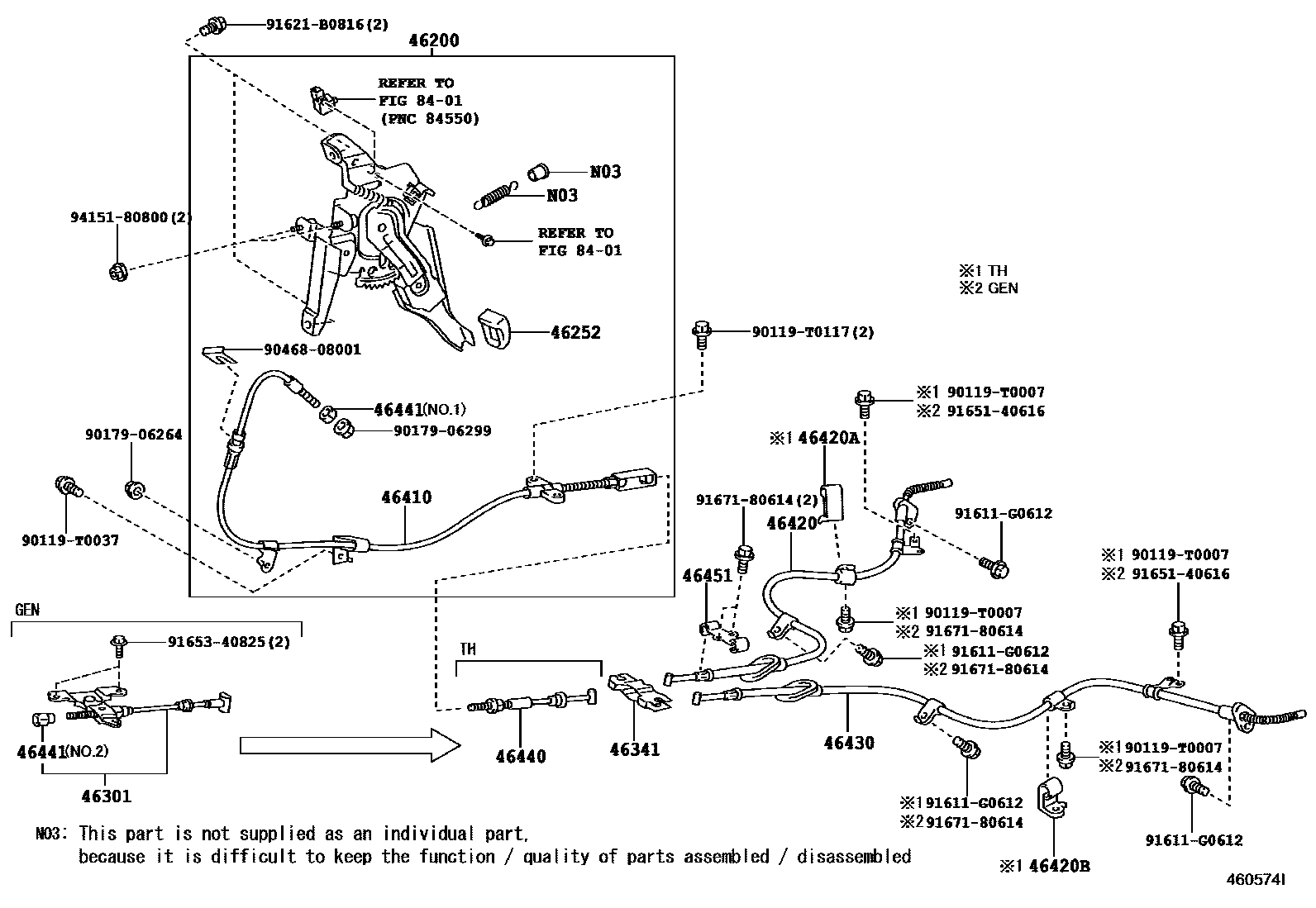

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-68010iZNE10200804-200903

main46200-68020iANE11..TH200312-200512

46252PAD, PARKING PEDAL

main46252-68010iANE11..TH200312-200512

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-68010iZNE10200804-200903

46341EQUALIZER, PARKING BRAKE

main46341-20070iANE1#..TAIW200312-200703

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0M010iANE1#..TAIW200408-200703

main46410-68010iZNE10200804-200903

main46410-68020iANE11..TH200312-200512

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0M010iANE12200408-200703

main46420-68010iZNE10200804-200903

main46420-68030iANE11..TH200512-200903

main46420-68050iANE11..TAIW200511-200703

main46420-68070iANE11..TH200904-200910

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01C31iANE11..TAIW200312-200703

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01C31iANE11..TAIW200512

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0M010iANE12200703-200909

main46430-68010iZNE10200804-200903

main46430-68030iANE11..TH200512-200903

main46430-68050iANE11..TAIW200511-200703

main46430-68070iANE11..TH200904-200910

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-68020iANE11..TH200312-200512

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iANE11..TH200312-200512

NO.1

main46441-47020iZNE10200804-200903

NO.2

46451BRACKET, CABLE SUPPORT

main46451-0M010iANE1#..TAIW200408-200703

main46451-68010iANE11..TH200312-200512
