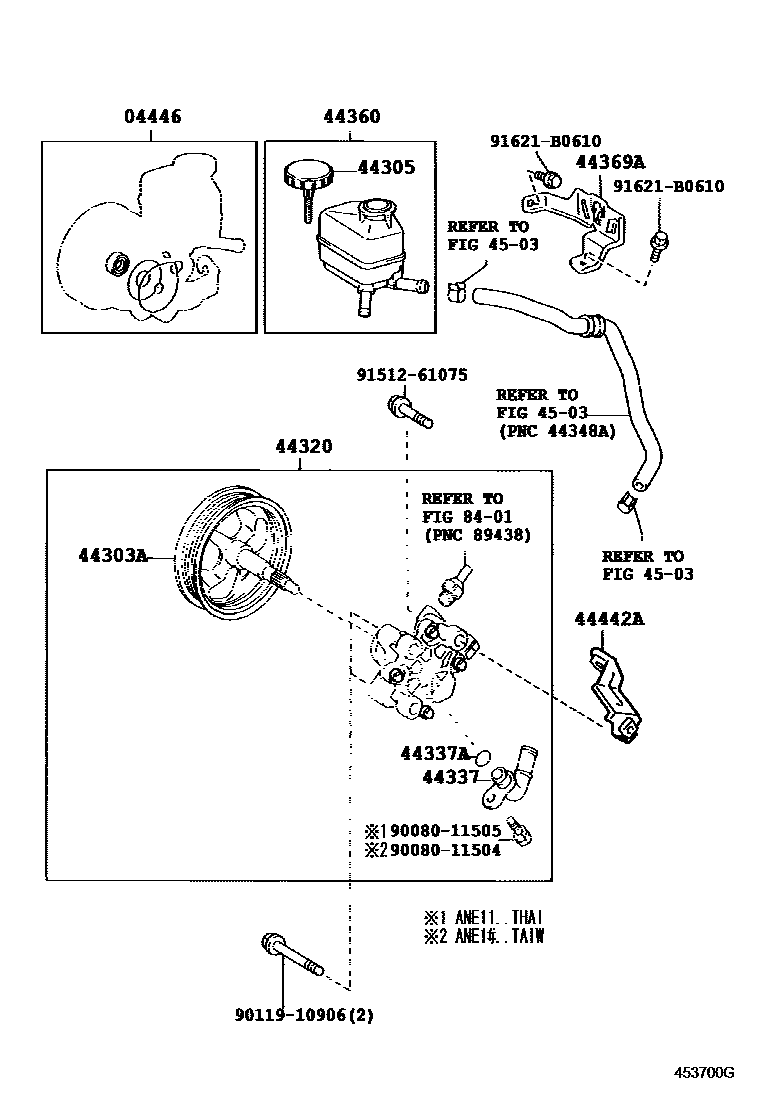

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-02090iANE1#..TAIW200703-200909

main04446-06060iANE11..TH200512-200805

main04446-06110iANE11..TH200806-200910

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06040iANE11..TH200512

main44303-06050iANE1#..TAIW200408-200703

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-20041iANE11..TH200312-200512

main44305-20050iANE1#200712

44320PUMP ASSY, VANE

main44310-0M010iANE11..TH200512-200910

main44310-0M020iANE1#..TAIW200408-200703

44337UNION, POWER STEERING SUCTION PORT

main44337-02080iANE1#..TAIW200408-200703

main44337-06060iANE11..TH200312-200512

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30088iANE1#..TAIW200408-200703

main90080-30093iANE11..TH200512-200910

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20150iANE12;ANE11..06S200312-200703

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-20060iANE11..TH200312-200512

44442ABRACKET, VANE PUMP, REAR

main44442-20030iANE11..TH200312-200512

4503

8401

9008011504

main90080-11504

9008011505

main90080-11505

9011910906

main90119-10906

9151261075

main91512-61075

91621B0610

main91621-B0610

16 parts on this diagram · 1 diagram in section
