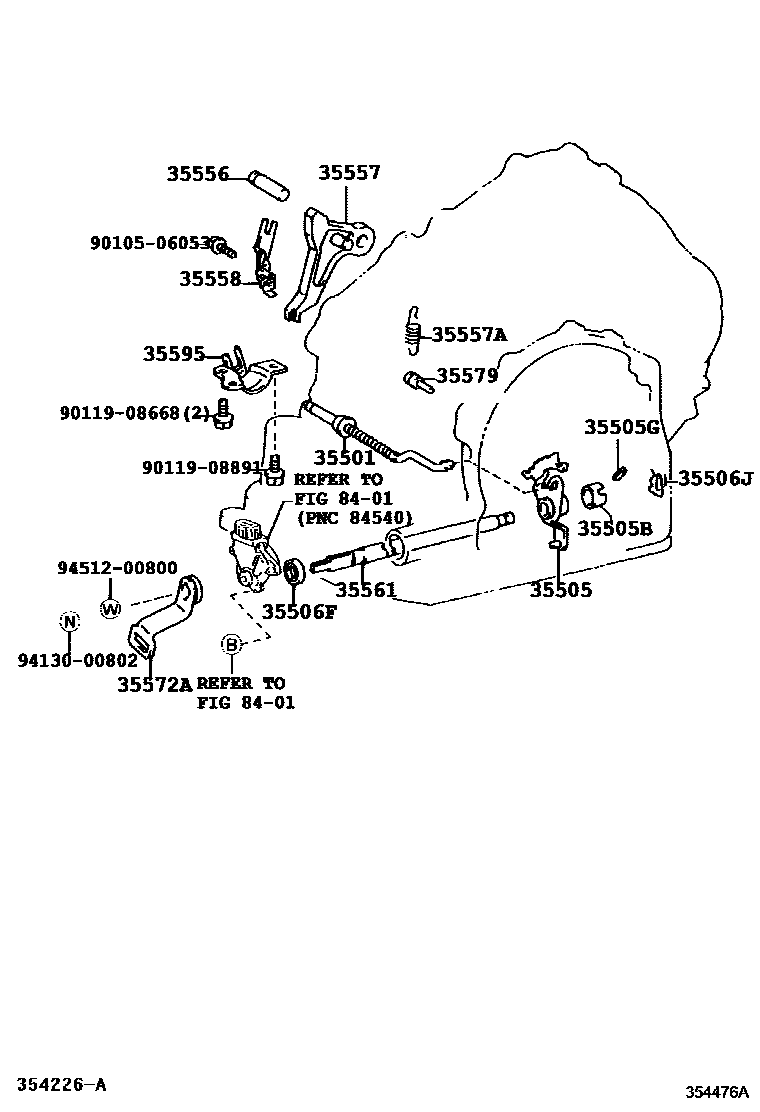

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U241E 0002 1U341E

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iANE1#..TAIW200312-200703

main35501-52020iZNE10200804-200903

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-20030iZNE10200804-200903

main35505-21010iANE11..TH200312-200512

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iANE11..TH200312-200512

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iANE12;ANE11..06S200312-200703

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iANE1#..TAIW200312-200703

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iANE1#,ZNE10200512

35556SHAFT, PARKING LOCK PAWL

main35556-28020iANE11..TH200312-200512

main35556-32020iZNE10200804-200903

35557PAWL, PARKING LOCK

main35557-52020iZNE10200804-200903

main35590-32010iANE1#..TAIW200312-200703

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iANE1#..TAIW200312-200703

main90949-03089iZNE10200804-200903

35558CLAMP, PAWL SHAFT

main35558-28020iANE11..TH200512

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iANE11..TH200312-200512

main35561-52020iZNE10200804-200903

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-20250iZNE10200804-200903

main35572-28100iANE12;ANE11..06S200312-200703

35579PIN, PARKING LOCK PAWL

main35594-28010iANE11..TH200312-200512

35595BRACKET, PARKING LOCK PAWL

main35595-21010iANE11..TH200312-200512

main35595-52020iZNE10200804-200903

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506053

main90105-06053

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

20 parts on this diagram · 2 diagrams in section
