TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

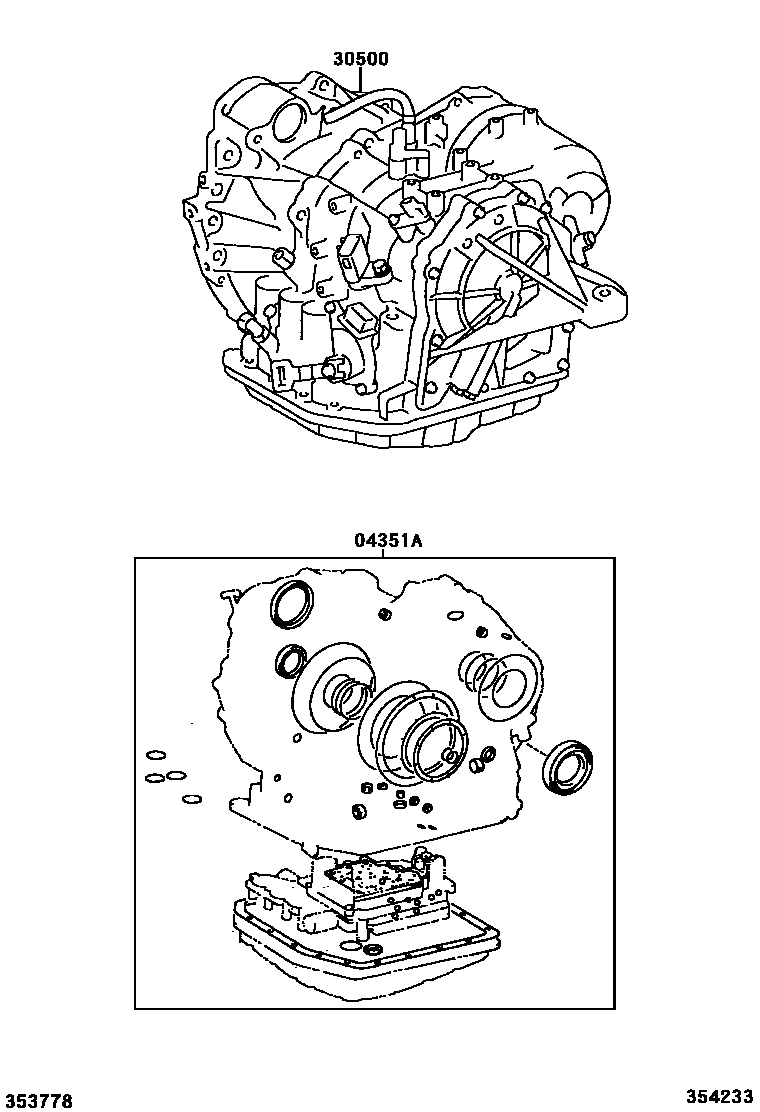

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12750i200902-200903

main04351-33120i200312-200406

main04351-33380i200512-200910

main04351-33381i200703-200909

main04351-52081i200804-200902

30500TRANSAXLE ASSY, AUTOMATIC

main30500-68030i200312-200602

U241E

main30500-68031i200603-200703

U241E

main30500-68050i200804-200903

U341E

2 parts on this diagram · 2 diagrams in section
