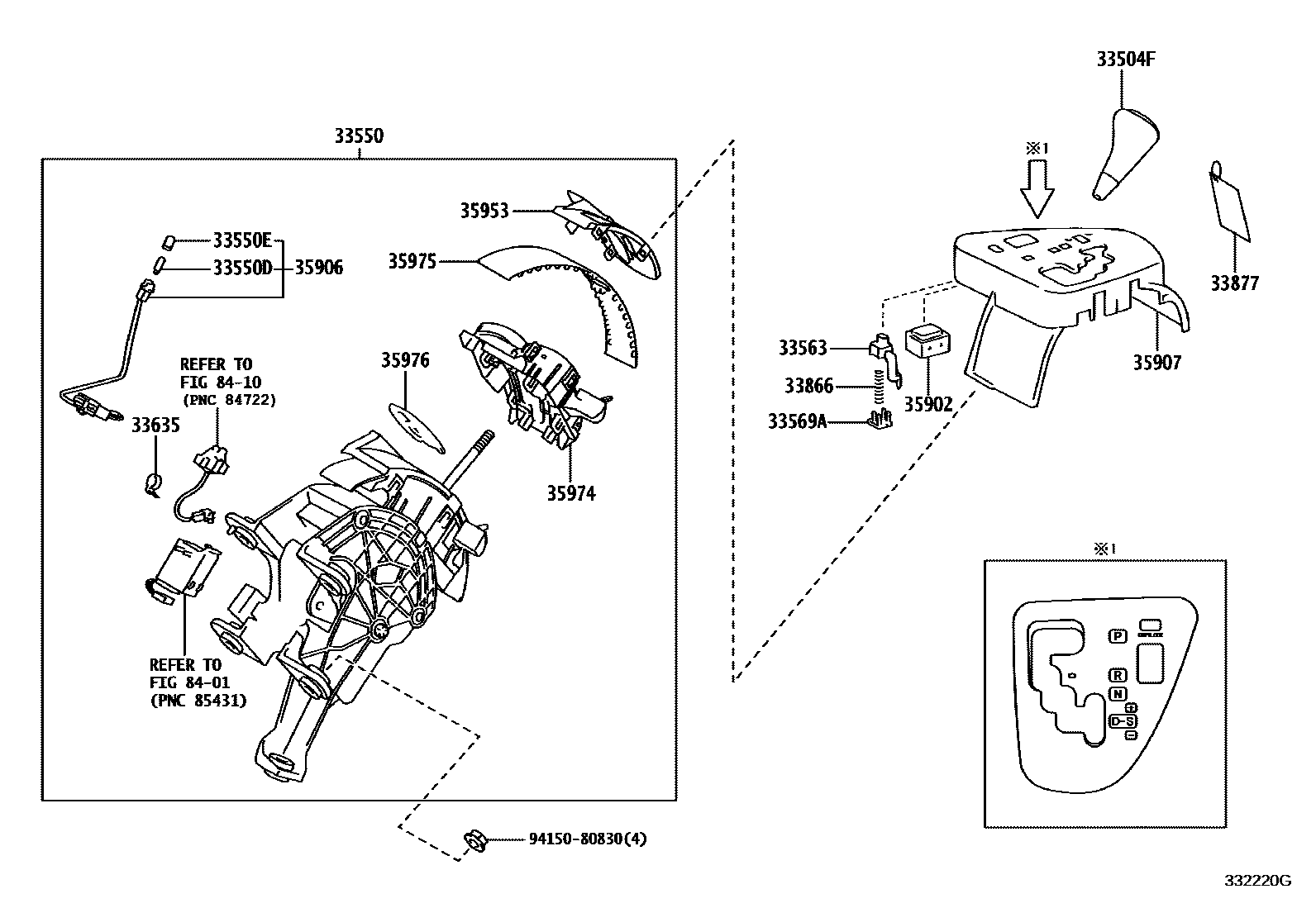

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
ORCHID BROWN,TRIM0#
33550FLOOR SHIFT ASSY, TRANSMISSION
33550DBULB, POSITION INDICATOR LAMP
12V 2W
33550ECAP, POSITION INDICATOR LAMP
33563BUTTON, SHIFT LOCK RELEASE
33569AGUIDE, SHIFT LOCK RELEASE BUTTON
33635GUIDE, WIRE (FOR SHIFT LEVER)
33866SPRING, SHIFT LOCK RELEASE
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35902COVER SUB-ASSY, POSITION INDICATOR HOUSING
35906WIRE SUB-ASSY, INDICATOR LAMP
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35953GUIDE, POSITION INDICATOR LIGHT
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9415080830
main94150-80830
19 parts on this diagram · 5 diagrams in section
