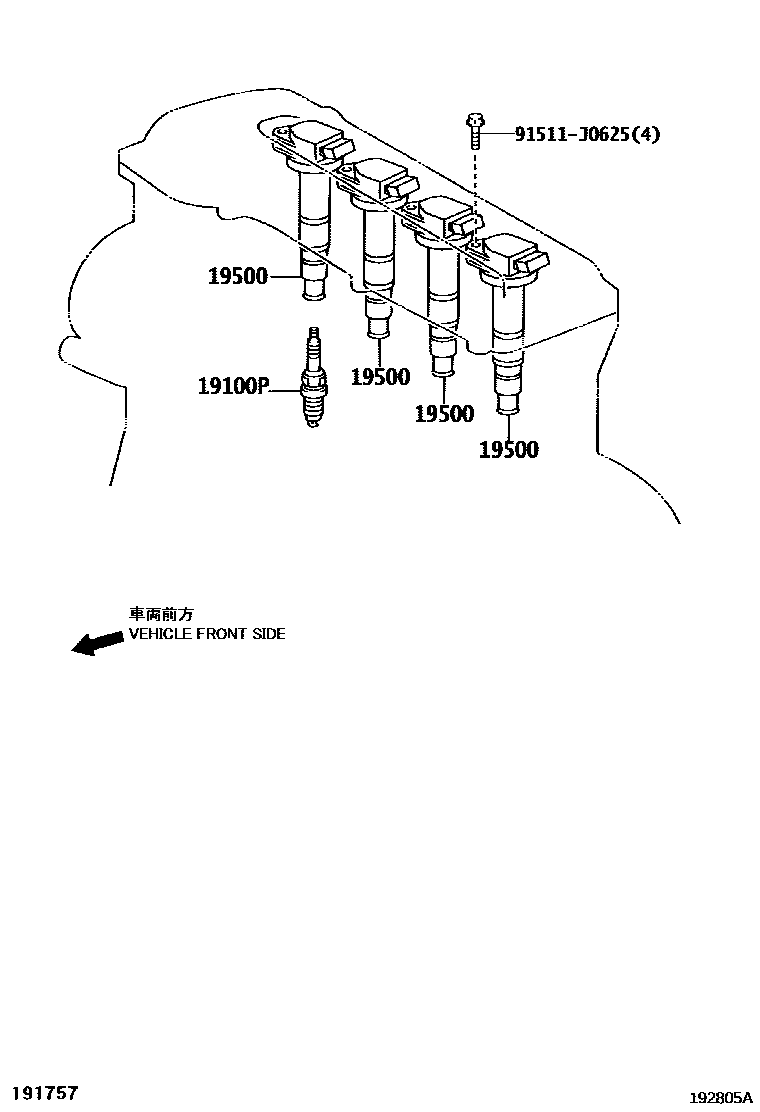

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01164i1ZZFE..ZNE10200804-200903

K16R-U11

main90919-01210i1AZFE..ANE1#..TAIW200312-200703

SK20R11

main90919-T1010i1AZFE..ANE1#200905

IFR6A11

sub90919-T1012

19500COIL ASSY, IGNITION

main90080-19015i1ZZFE..ZNE10200804-200903

(L),MARK 90080-19015

sub90919-02262

main90080-19019i1ZZFE..ZNE10200804-200903

(L),MARK 90080-19019

sub90919-W2001

main90919-02239i1ZZFE..ZNE10200804-200903

(J),MARK 90919-02239

sub90919-02262

main90919-02244i1AZFE..ANE1#200312-200703

sub90919-02266

main90919-T2002i1ZZFE..ZNE10200804-200903

(L),MARK 90919-T2002

sub90919-T2006

91511J0625

main91511-J0625

3 parts on this diagram · 2 diagrams in section
