V-BELT

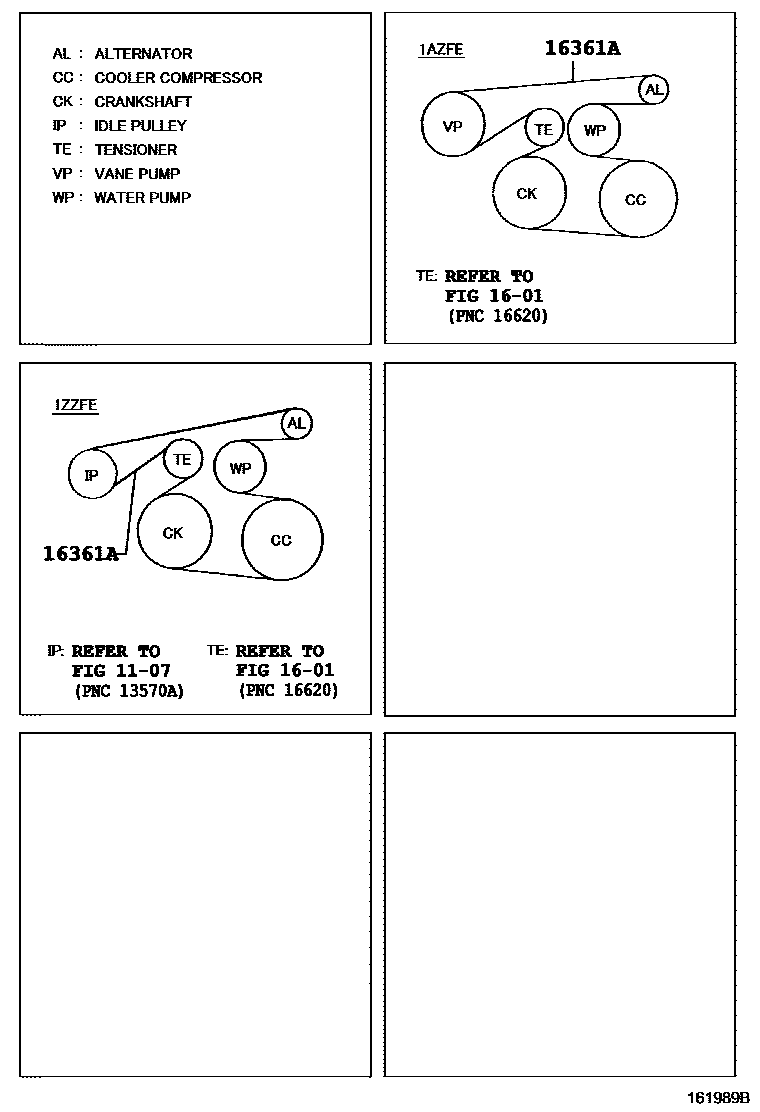

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91214i200312-200402

(L),MITSUBOSHI

main90916-02502i200312-200402

(J),MITSUBOSHI

main90916-02574i200804-200903

main90916-02598i200512

main90916-02599i200408-200703

3 parts on this diagram · 1 diagram in section
