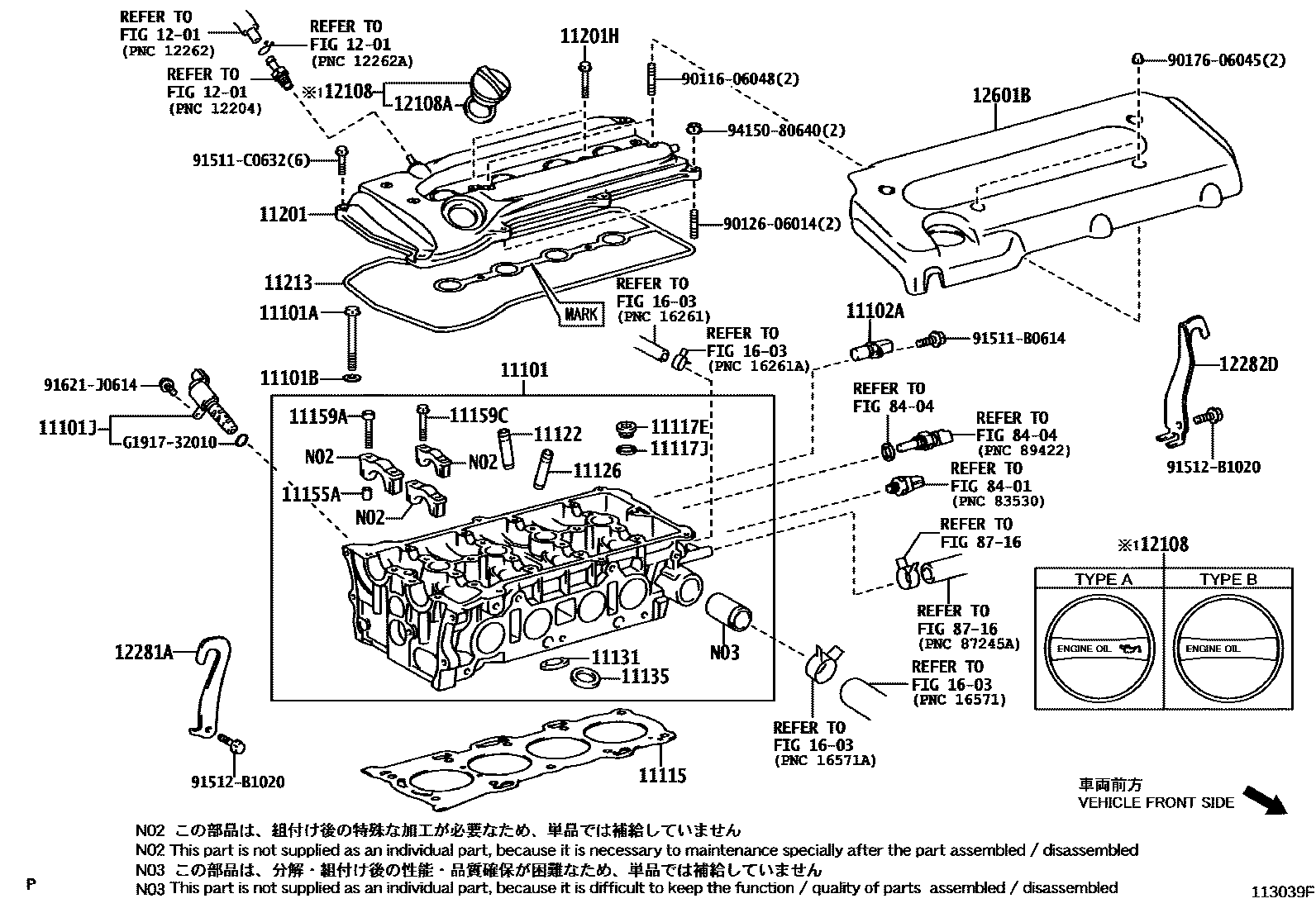

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-22120
sub11101-28012
sub11310-0H011
sub11310-0H021
sub11310-0H041
sub11310-0H051
sub11310-28071
sub11310-28082
sub11321-28042
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11102ASENSOR, CAMSHAFT POSITION
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2
NO.1
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
(L),MARK 11213-0H020
(L),MARK 11213-0H030
(L),MARK 11213-0H040
(J)
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
(L),T/P A:REF.ILLUST
(J)
(J),T/P A:REF.ILLUST
TYPE B:REFER ILLUST.
12108AGASKET(FOR OIL FILLER CAP)
(L),PNC 12108=TYPE A
(L)
PNC 12108=TYPE B
(J),PNC 12108=TYPE A
(J)
12281AHANGER, ENGINE, NO.1
NO.2
NO.1
12282DHANGER, ENGINE, NO.2
12601BCOVER SUB-ASSY, ENGINE, NO.1
1603
8401
8404
8716
9011606048
main90116-06048
9012606014
main90126-06014
9017606045
main90176-06045
91511B0614
main91511-B0614
91511C0632
main91511-C0632
91512B1020
main91512-B1020
91621J0614
main91621-J0614
9415080640
main94150-80640
G191732010
mainG1917-32010
37 parts on this diagram · 2 diagrams in section
