ENGINE OVERHAUL GASKET KIT

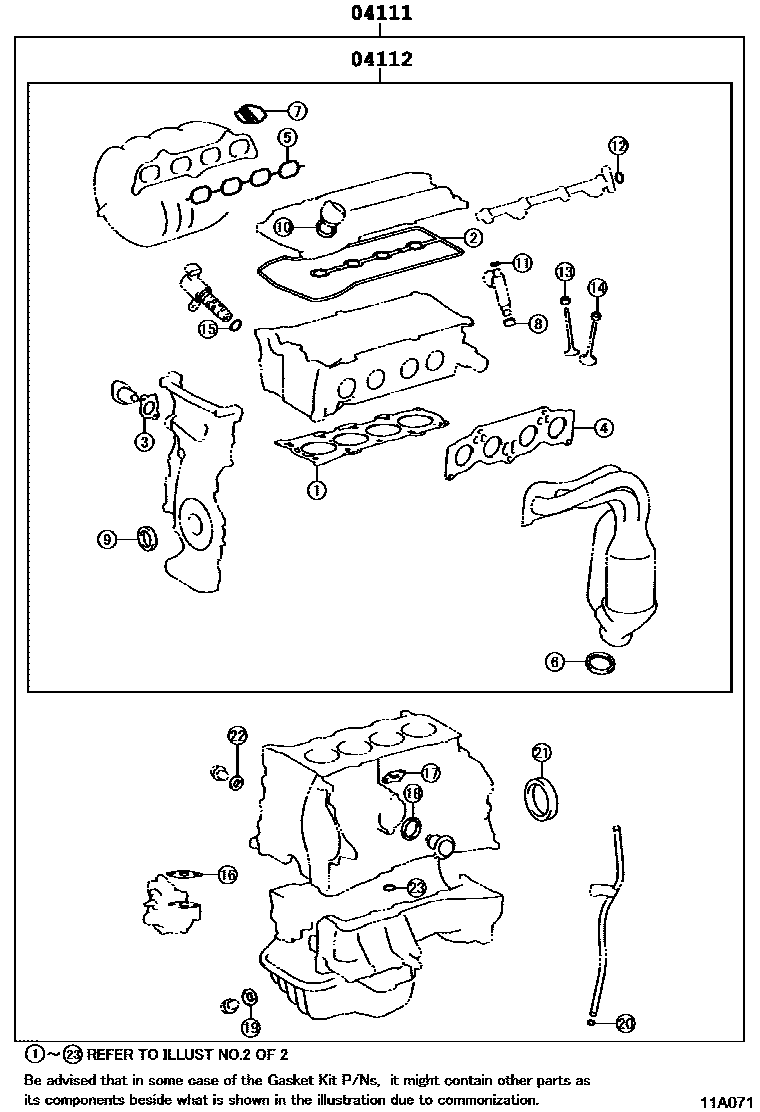

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0H240i200512-200607

main04111-22840i200804-200806

main04111-22841i200806-200903

main04111-28401i200312-200510

main04111-28402i200510-200511

main04111-28403i200511-200703

main04111-28404i200710-200904

main04111-28405i200904

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0H220i200512-200607

main04112-22690i200804-200903

main04112-28381i200312-200510

main04112-28382i200510-200511

main04112-28383i200511-200703

main04112-28384i200710-200904

main04112-28385i200904

2 parts on this diagram · 4 diagrams in section
