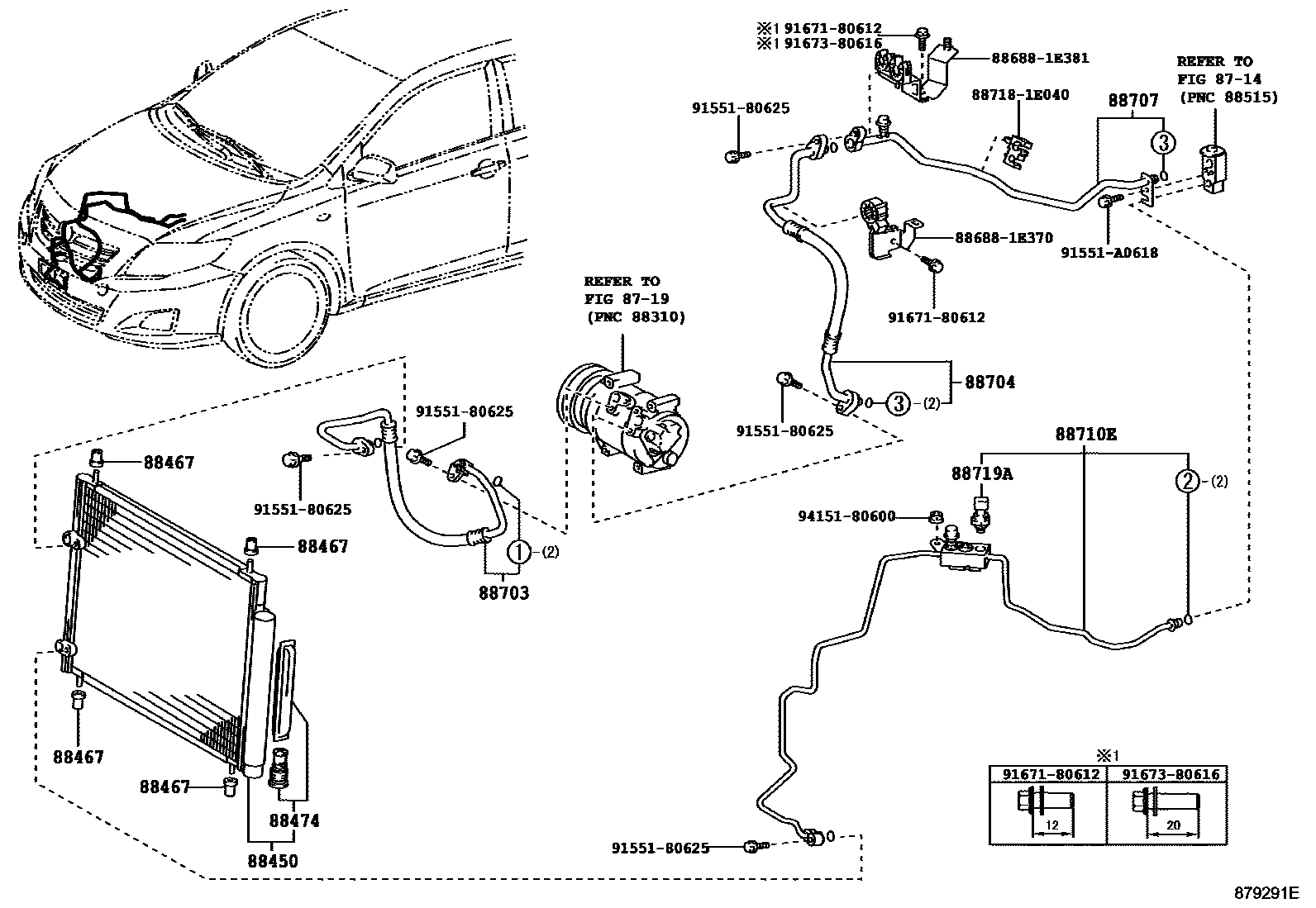

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88450CONDENSER ASSY, W/RECEIVER

main88450-12280iZRE152..D; ZRE152..N200703-200812

MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(MAKER OPTION)

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iZRE152..D; ZRE152..N200703-200812

MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(MAKER OPTION)

88474DRYER, COOLER

main88474-12030iZRE152..D; ZRE152..N200703-200812

MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(MAKER OPTION)

88703HOSE SUB-ASSY, DISCHARGE

main88703-12830iZRE15#201004

main88703-02570supersedes 88703-12830iZRE152..D200703-200812

MANUAL AIR CONDITIONER(DEALER OPTION)

88704HOSE SUB-ASSY, SUCTION

main88704-1A181iZRE152..D; ZRE152..N200703-200812

MANUAL AIR CONDITIONER(MAKER OPTION)

main88704-02820supersedes 88704-1A181iZRE152..D200812-200905

AIR CONDITIONER-MANUAL(DOP)

88707PIPE SUB-ASSY, SUCTION

main88707-12250iZRE152..6F..N200812-201002

88710TUBE ASSY, AIR CONDITIONER

main88710-1A020iZRE152..D200703-200812

MANUAL AIR CONDITIONER(DEALER OPTION)

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-12760iZRE152..D; ZRE152..N200703-200812

MANUAL AIR CONDITIONER(MAKER OPTION)

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRE152..D; ZRE152..N200703-200812

MANUAL AIR CONDITIONER(MAKER OPTION)

886881E370BRACKET, COOLER DIAPHRAGM

main88688-1E370

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

887181E040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E040

9155180625

main91551-80625

91551A0618

main91551-A0618

9167180612

main91671-80612

9167380616

main91673-80616

9415180600

main94151-80600

19 parts on this diagram · 3 diagrams in section
