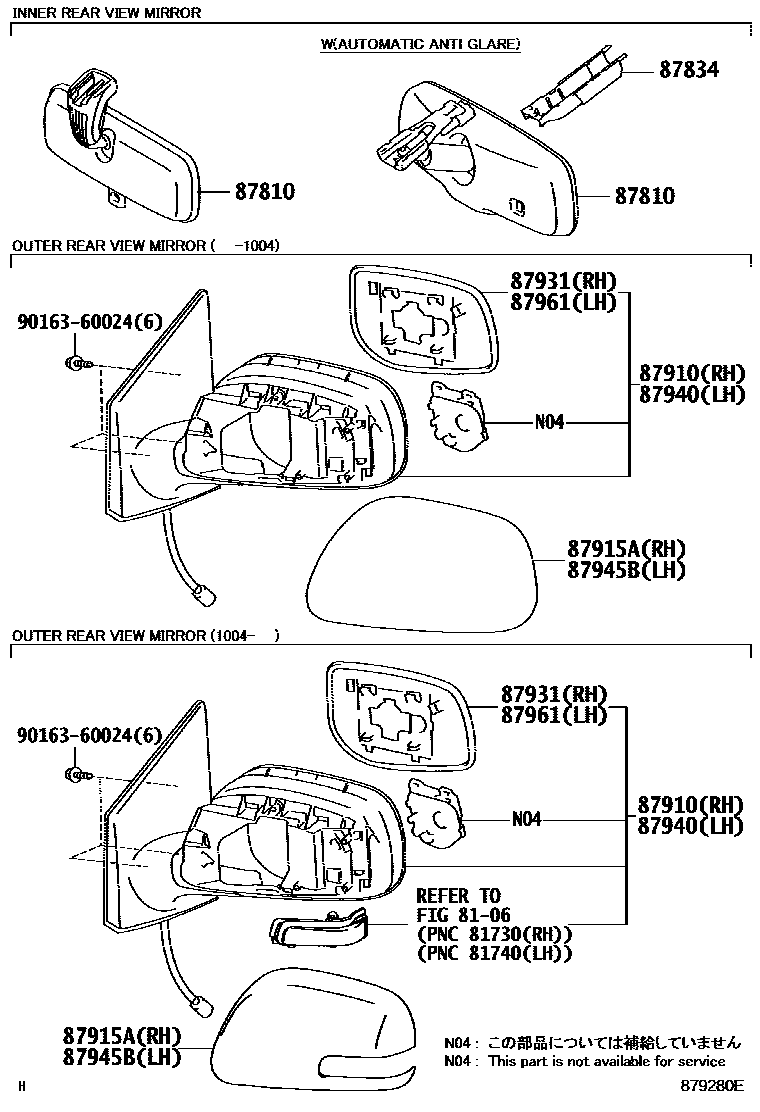

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87915ACOVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
LT.BLUE M.M.,8S1
BLUE ME.,8T7
BLUE ME.,8U6
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040; SUPER WHITE 2,040
GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7; SILVER ME.,1F7
BLACK MC.,209; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3; RED M.M.,3R3
SUPER RED II,3E5
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6
DK.BLUE ME.,8T8; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE ME.,8T8
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
LT.BLUE M.M.,8S1
BLUE ME.,8T7
BLUE ME.,8U6
SUPER WHITE 2,040
GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7; SILVER ME.,1F7
BLACK MC.,209
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3; RED M.M.,3R3
SUPER RED II,3E5
LT.BLUE M.M.,8S1; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6
DK.BLUE ME.,8T8; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE ME.,8T8
9016360024
main90163-60024
10 parts on this diagram · 1 diagram in section
