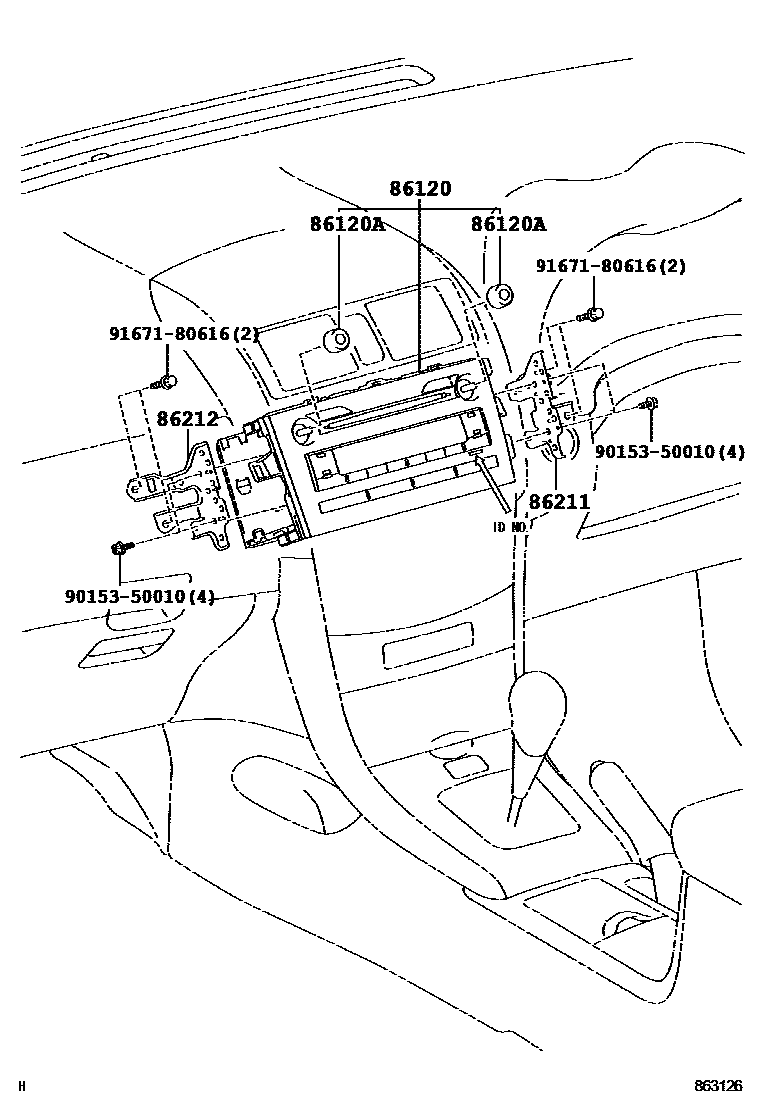

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-12A30supersedes 86120-12D40i200812-201004

MATSUSHITA, ID=53816; MATSUSHITA, ID=53816,AUDIO (OVERSEAS MARKET)-RADIOLESS & 6SPEAKER

main86120-12B00i200812-201004

MATSUSHITA, ID=53818; MATSUSHITA, ID=53818,AUDIO (OVERSEAS MARKET)-RADIOLESS & 6SPEAKER

main86120-12B10supersedes 86120-12B00i200812-201002

MATSUSHITA, ID=53819,AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD-CHANGER) & 6SPEAKER

main86120-12D40i201004-201010

PANASONIC,ID=53839; PANASONIC,ID=53839,AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

main86120-12D50i201004-201010

PANASONIC,ID=53841; PANASONIC,ID=53841,AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

main86120-12D80supersedes 86120-12B00i201004

PANASONIC,ID=53842,AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH)

86120AKNOB, RADIO RECEIVER SWITCH

main90010-24123×2i200703-200812

AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

main90010-24124×2i200703-200812

AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-12400i200703-200812

86212BRACKET, RADIO, NO.2

main86212-12380i200703-200812

9015350010

9167180616

6 parts on this diagram · 3 diagrams in section
